Ignition Key, Lights On & Seat Belt Warning

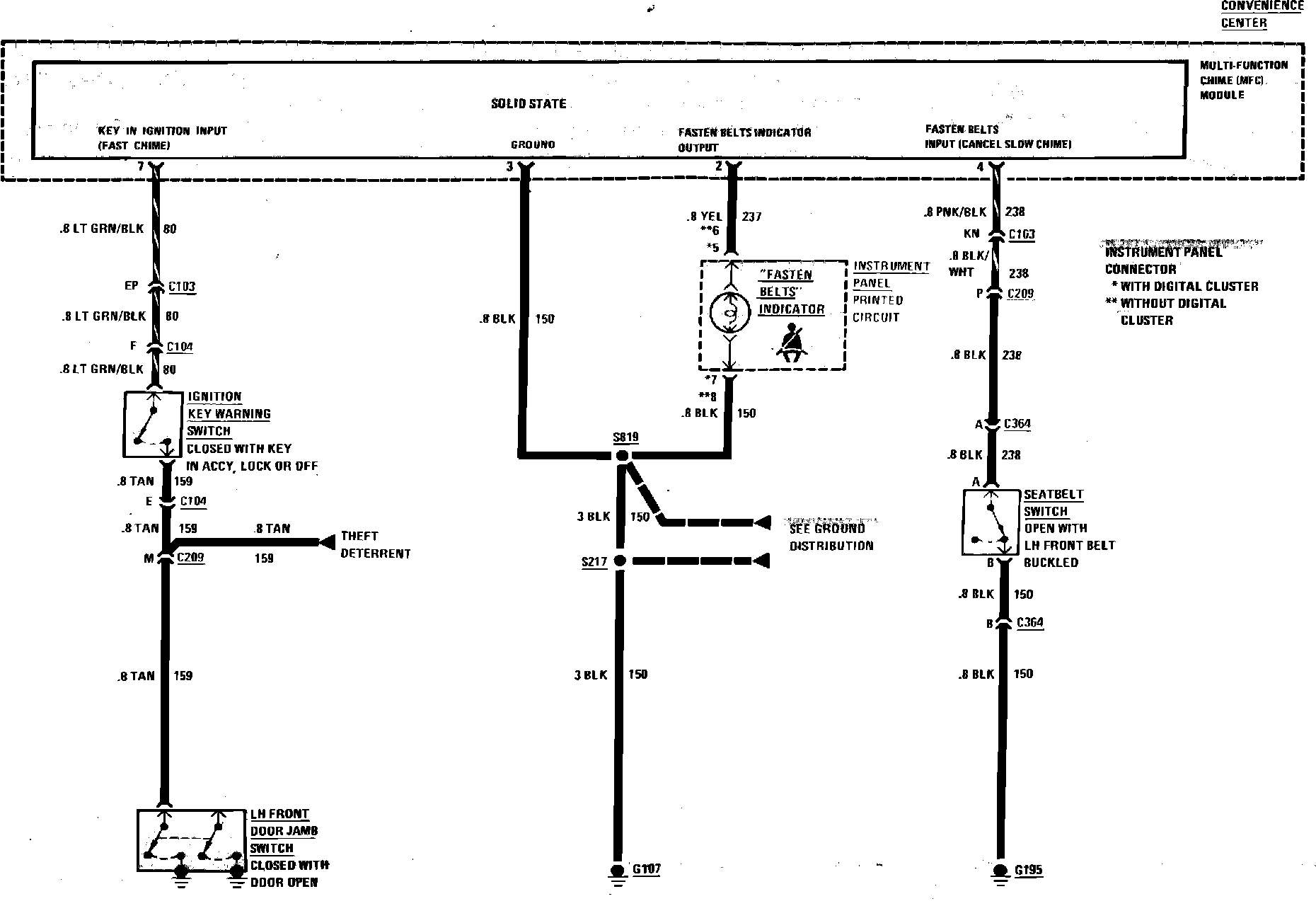

Ignition Key, Lights On & Seat Belt Warning Wiring Circuit:

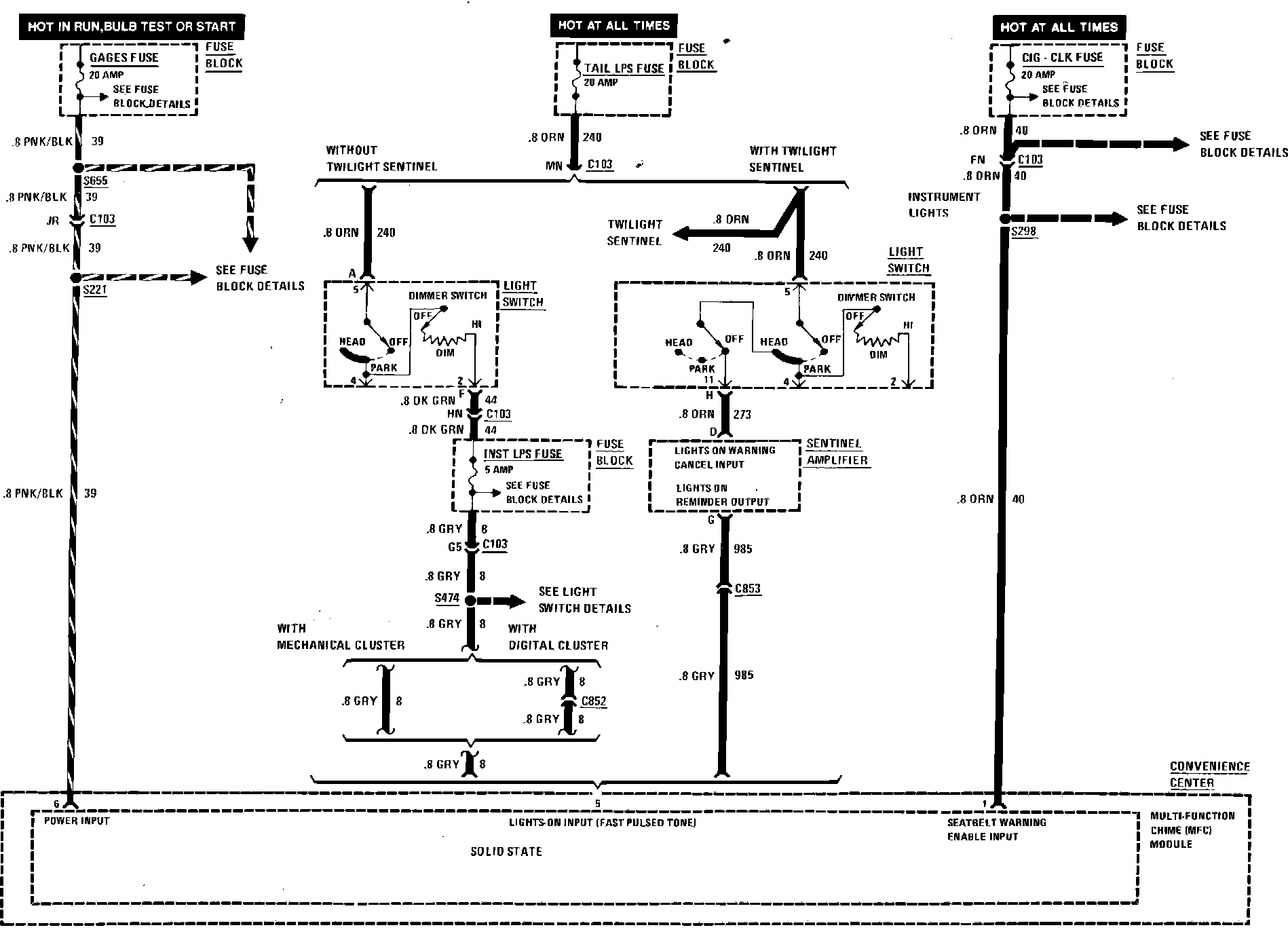

Ignition Key, Lights On & Seat Belt Warning Wiring Circuit:
