With Digital Cluster

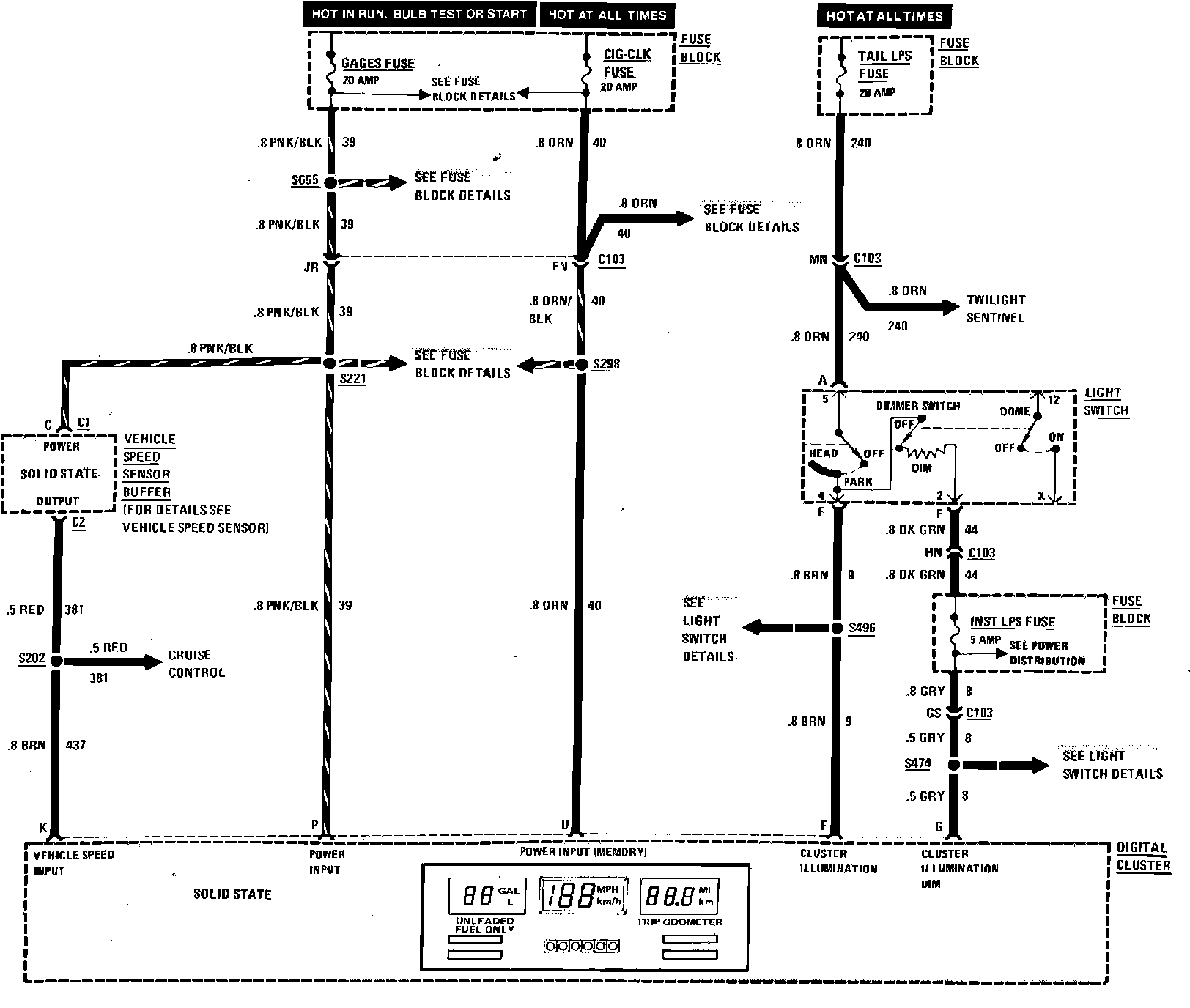

Instrument Panel Wiring Circuit With Digital Cluster:

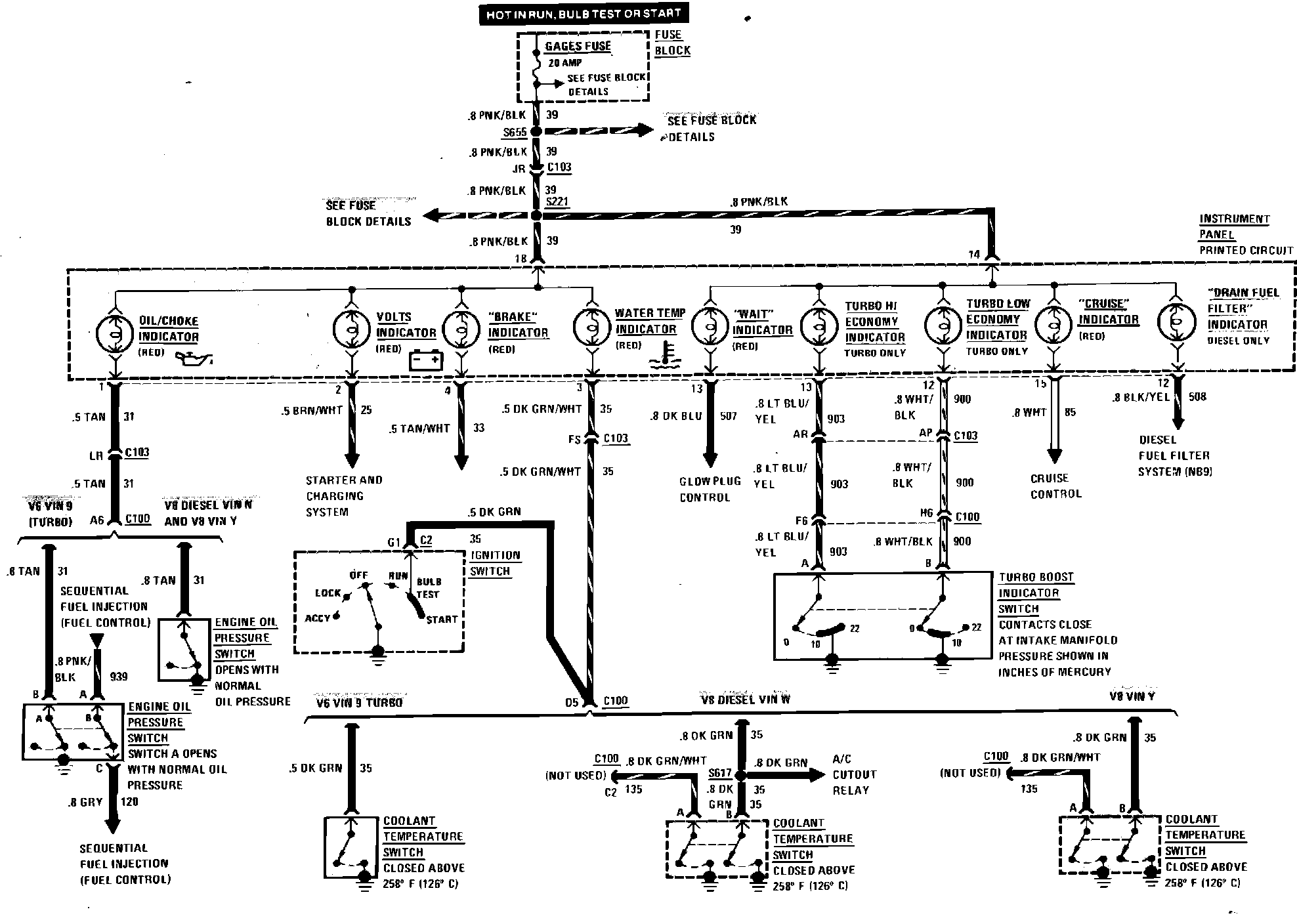

Instrument Panel Wiring Circuit With Digital Cluster:

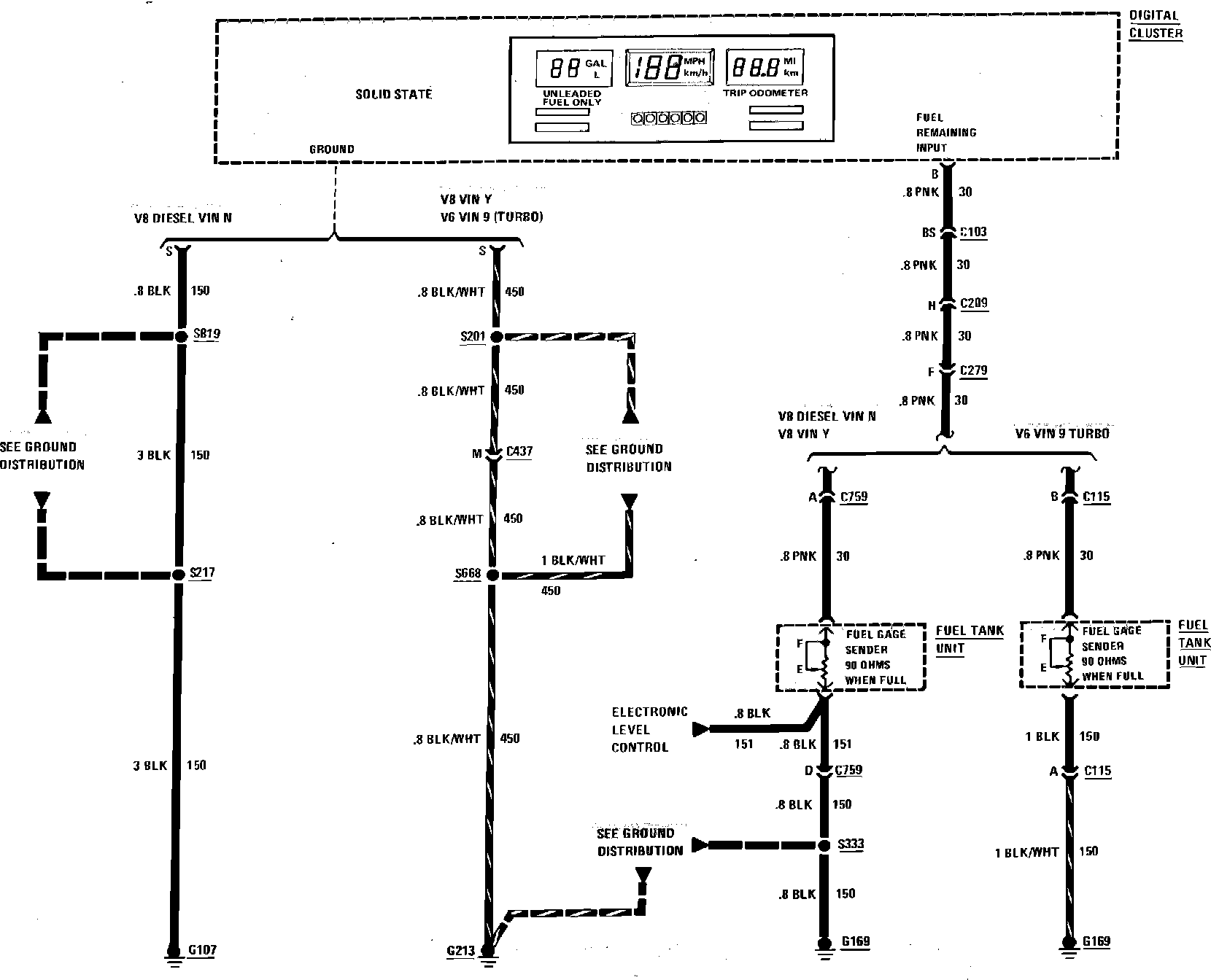

Instrument Panel Wiring Circuit With Digital Cluster:



Instrument Panel Wiring Circuit With Digital Cluster:
