Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Dome Lamp
>>
Convertible
Convertible

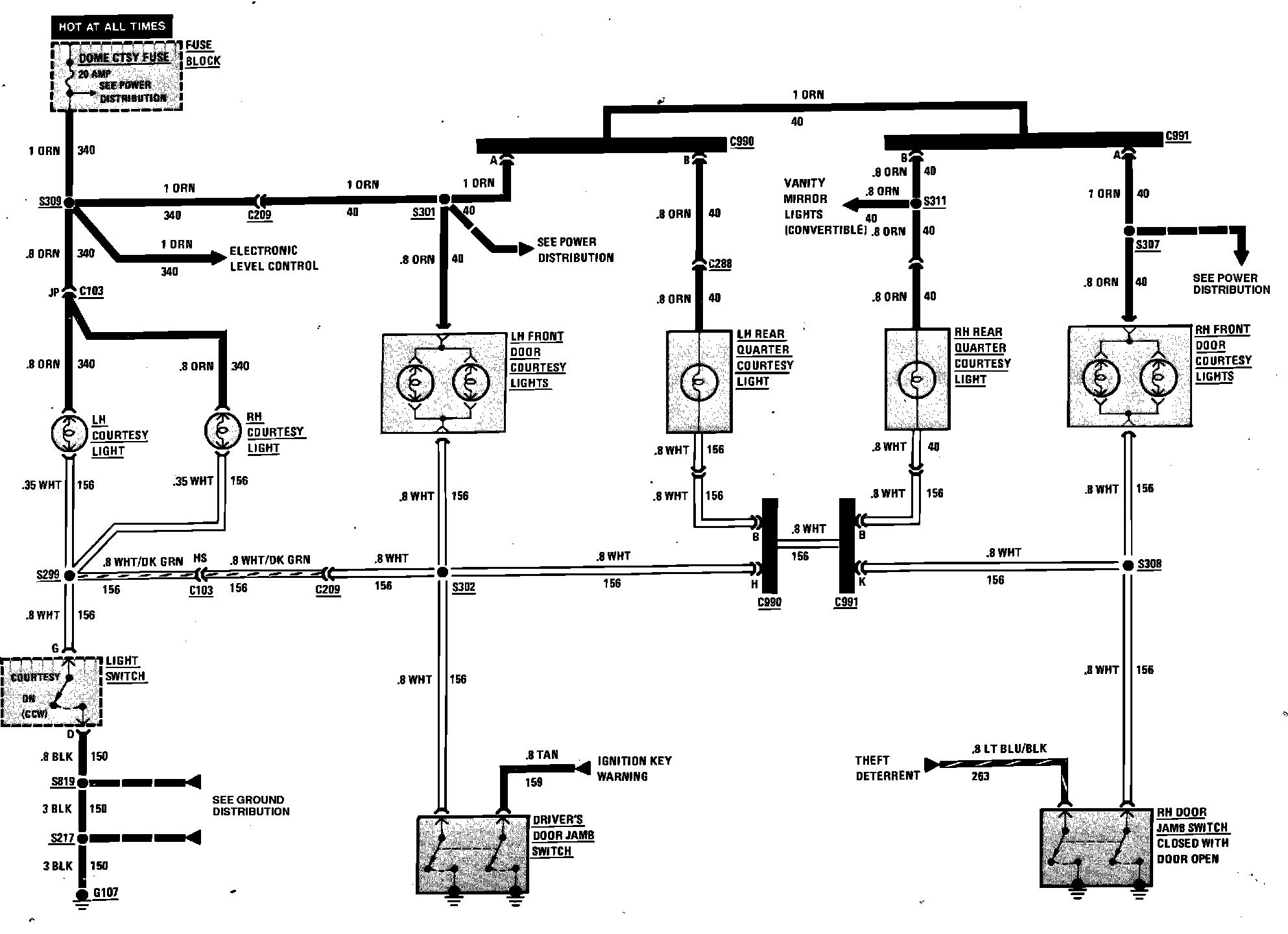

Courtesy Lights Wiring Circuit:
