Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Cigar Lighter, Glove Box Light & Vanity Mirror Light
>>
Convertible
Convertible

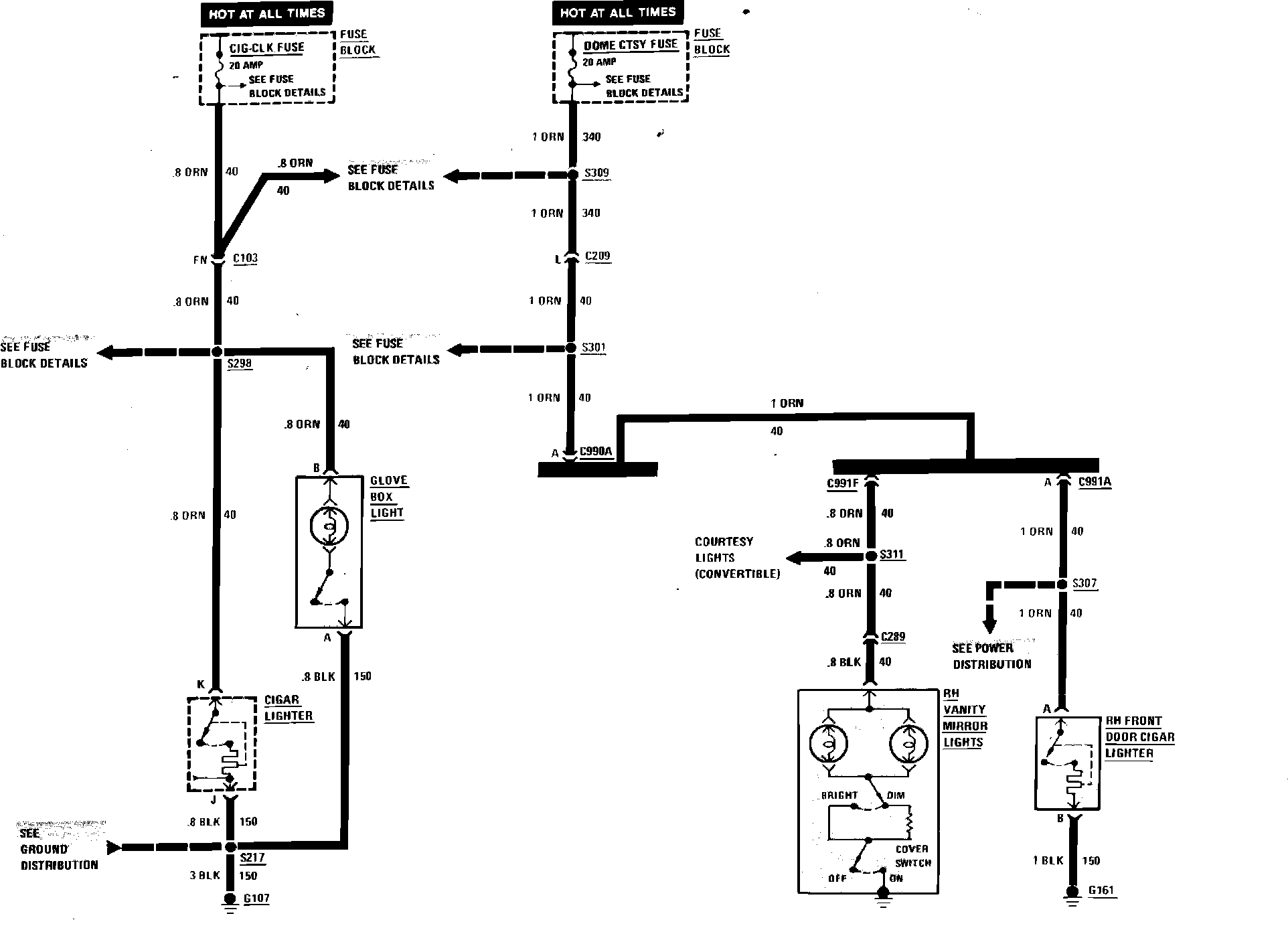

Cigar Lighter, Glove Box Light & Vanity Mirror Light Wiring Circuit Convertible:
