Home >> Buick >> 1985 >> Riviera V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Cigar Lighter, Glove Box Light & Vanity Mirror Light >> Hard-Top

Hard-Top

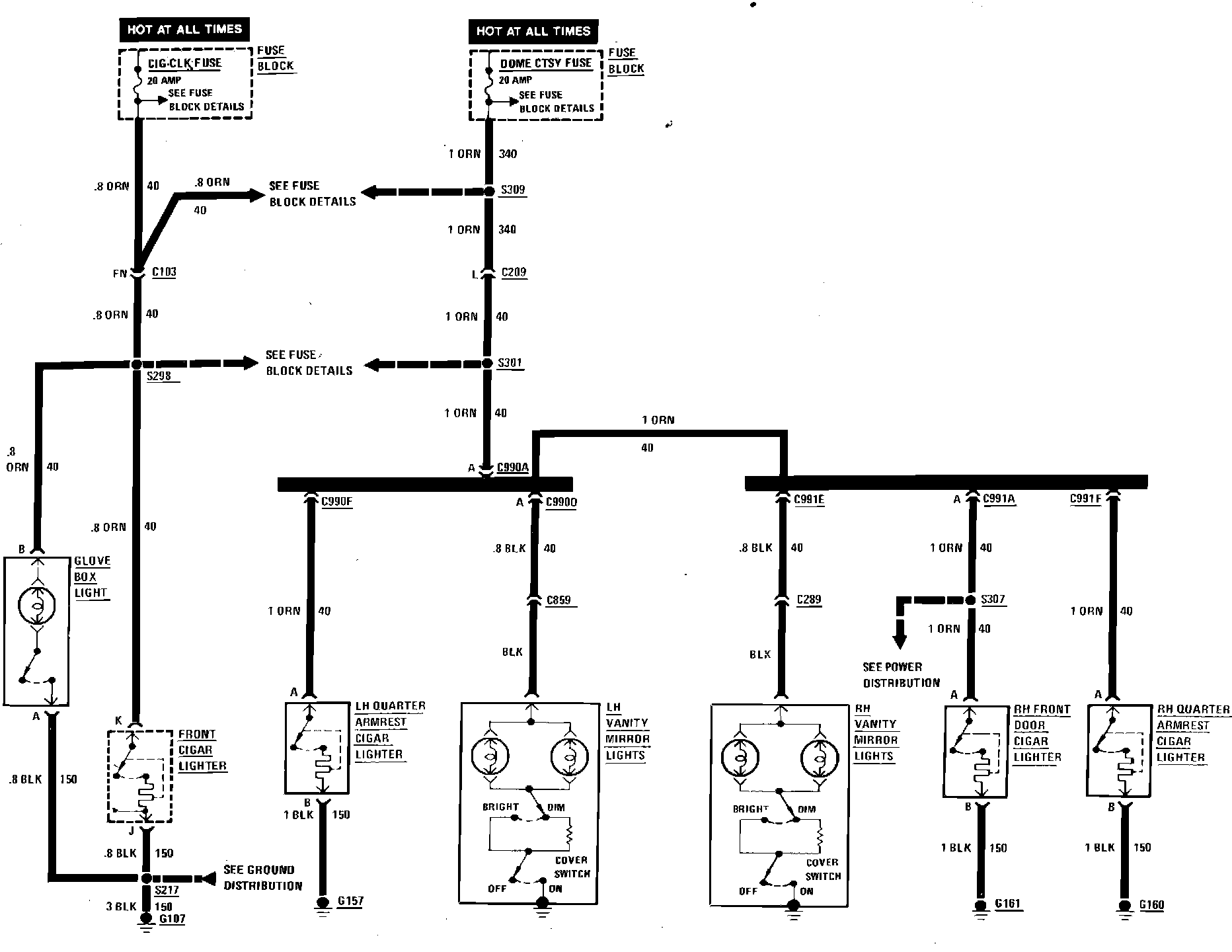

Cigar Lighter, Glove Box Light & Vanity Mirror Light Wiring Circuit Hard-Top:
