Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Emission Controls & Engine Data Sensors
Emission Controls & Engine Data Sensors

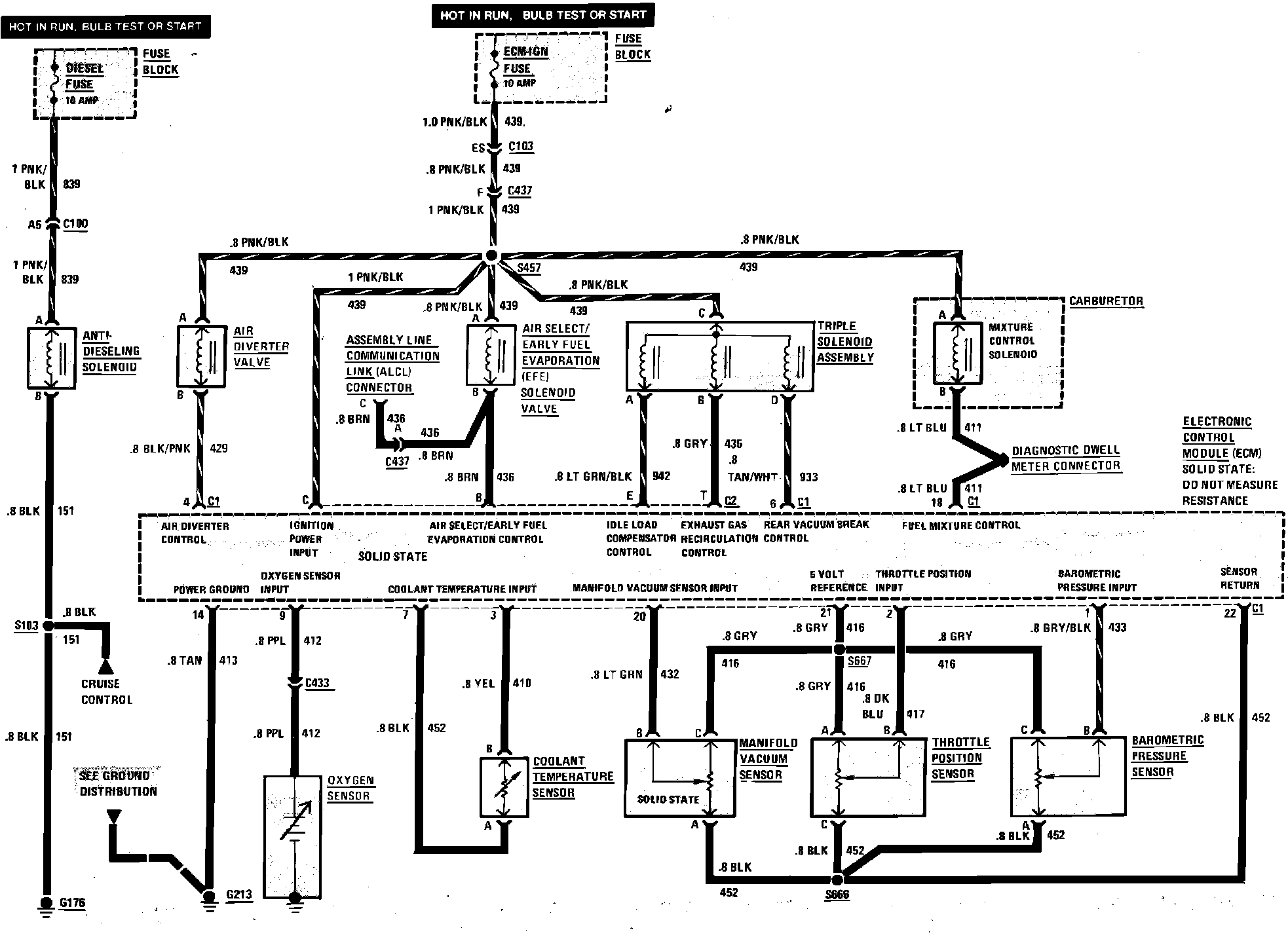

C-3 (Emission Controls & Engine Data Sensors) Wiring Circuit:
