Seats
>>
Power Seat Wiring Circuit
>>
With Memory (Part 1 of 2)
With Memory (Part 1 of 2)

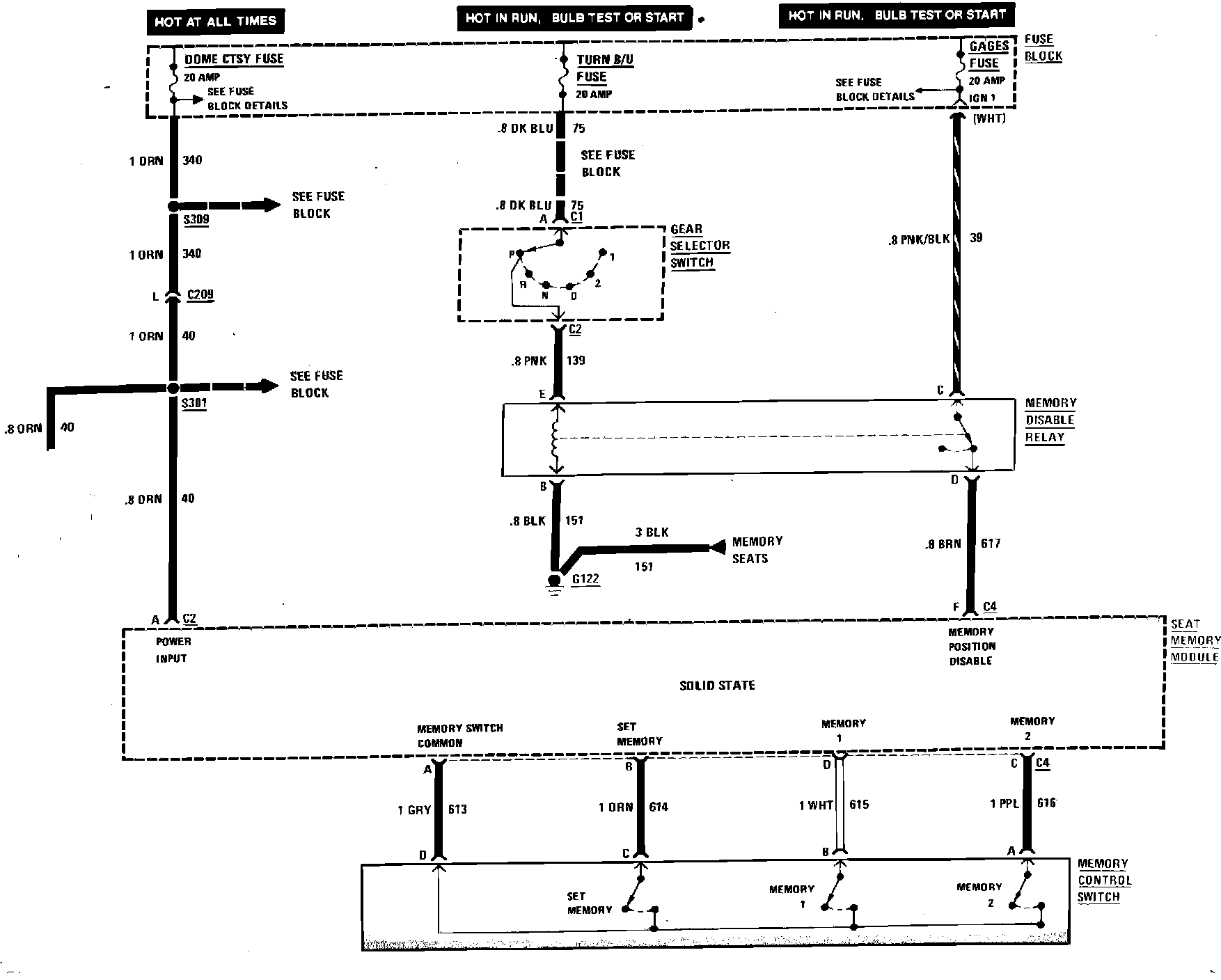

Power Seat (With Memory Wiring Circuit):
