Home >> Buick >> 1985 >> Riviera V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Part 1 of 2

Part 1 of 2

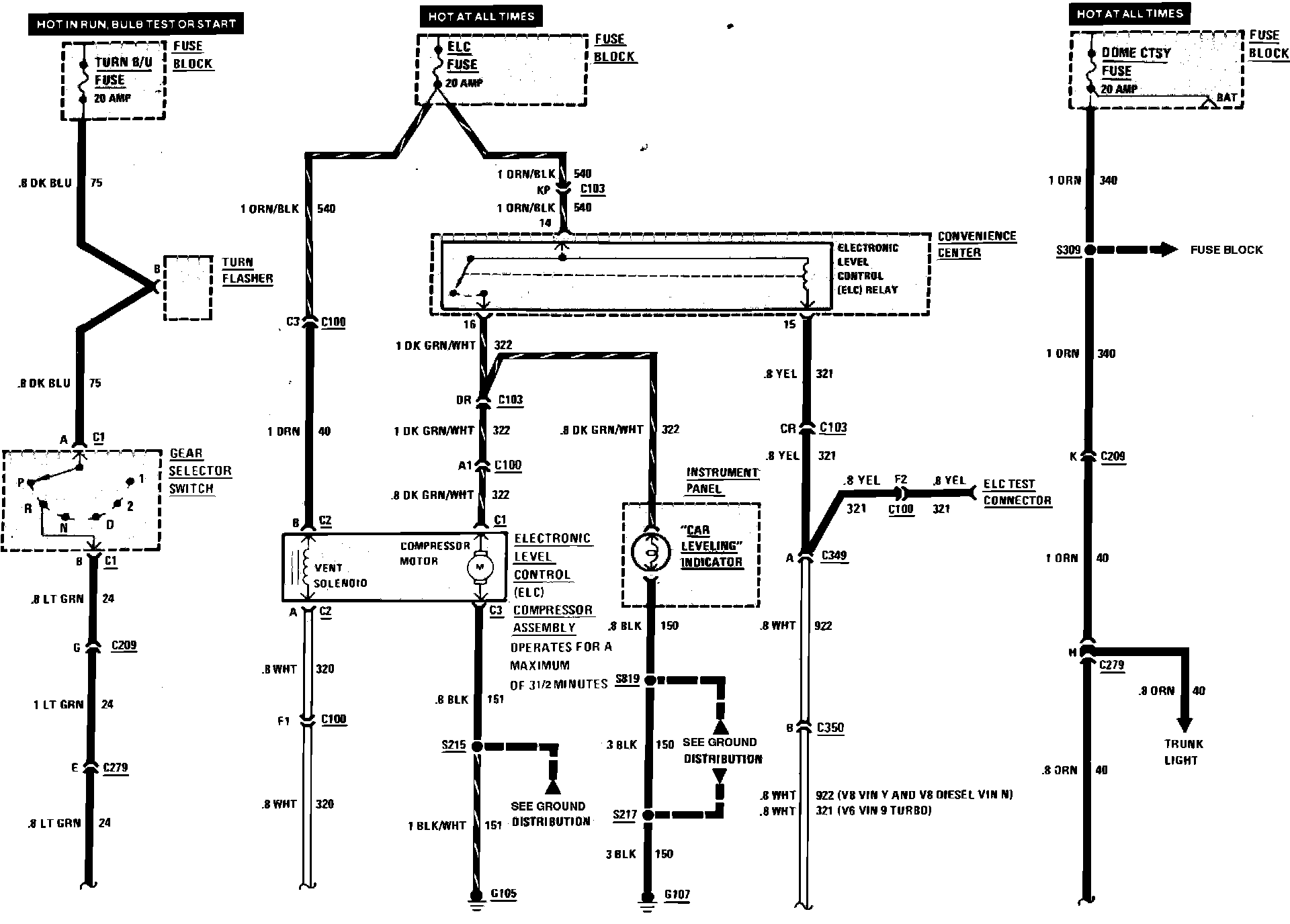

Electronic Level Control Wiring Circuit:
