Part 1 of 2

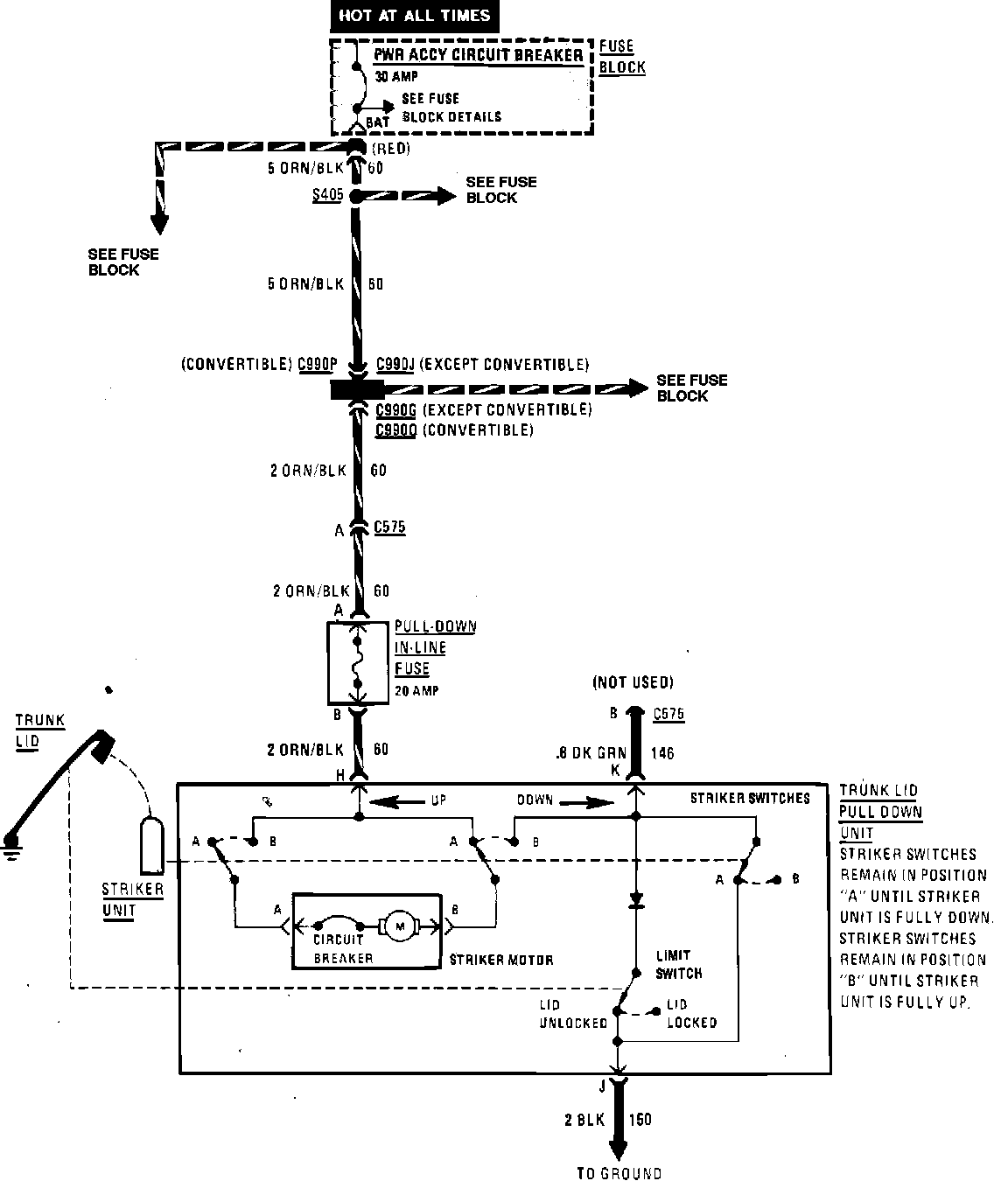

Trunk Lid Pull Down & Release Wiring Circuit:

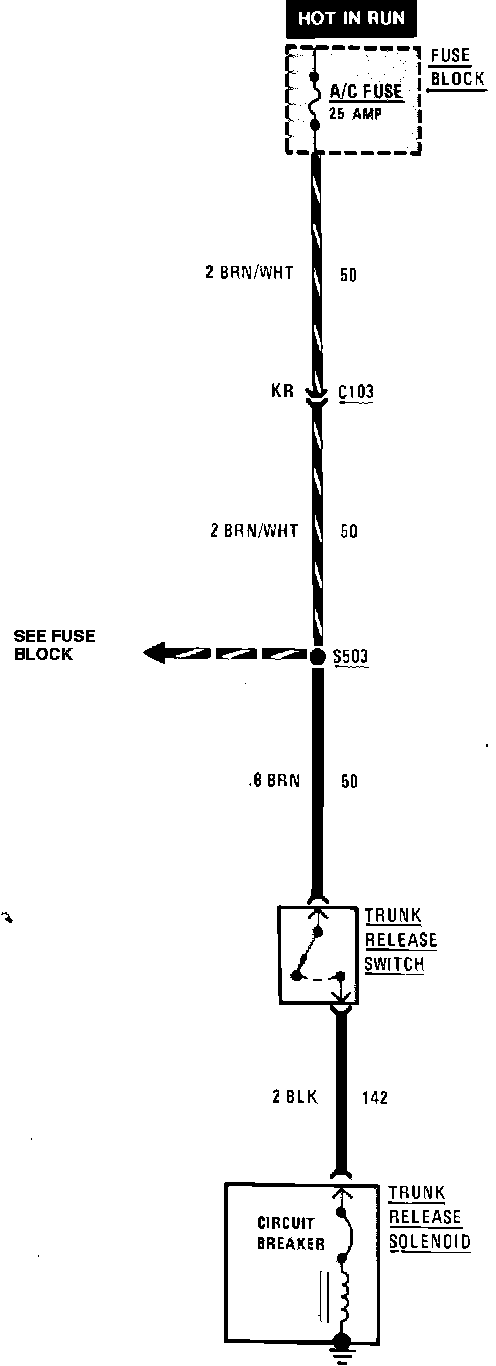

Trunk Lid Pull Down & Release Wiring Circuit:
