Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Without Pulse
Without Pulse

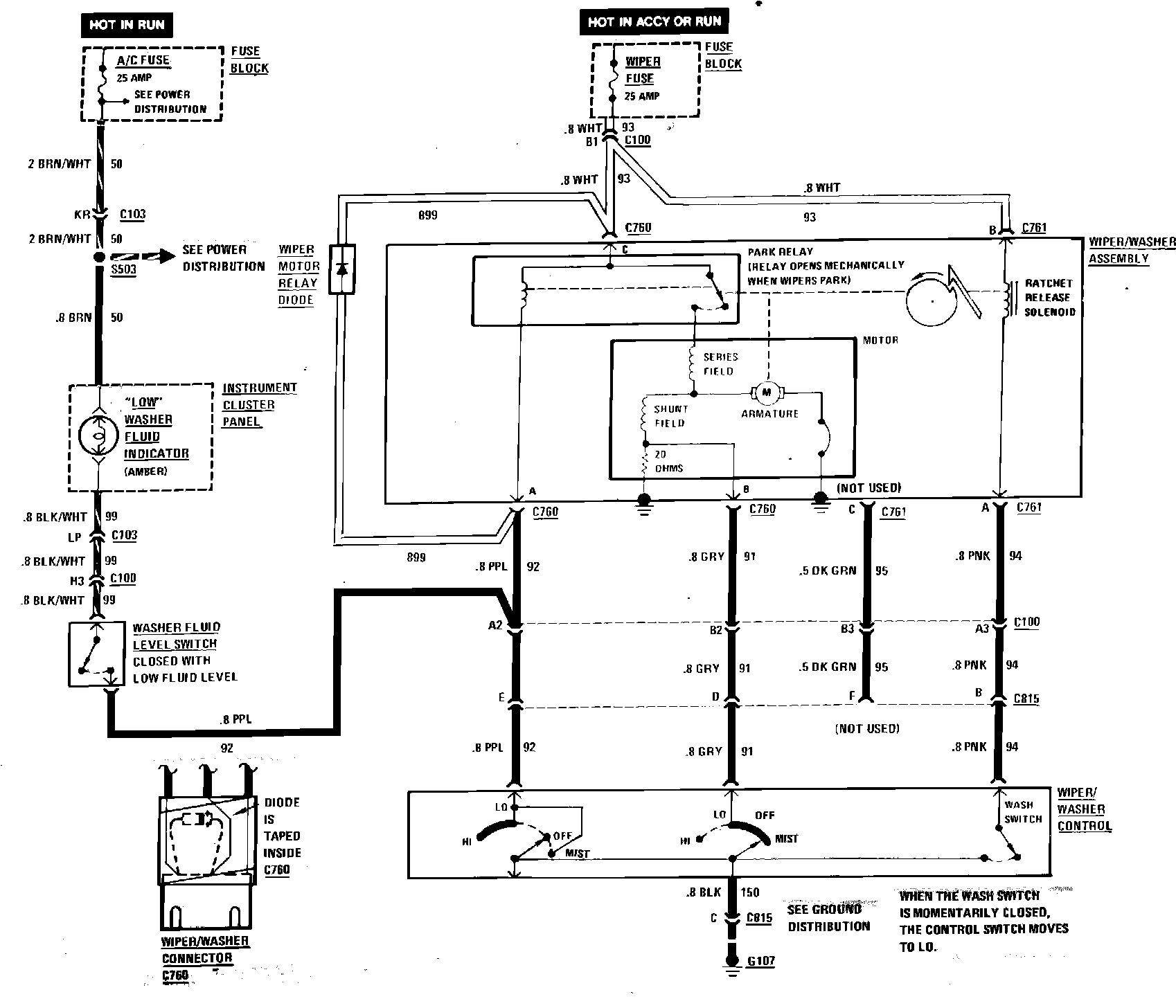

Wiper/Washer Wiring Circuit (Less Pulse):
