Engine Mount: Service and Repair

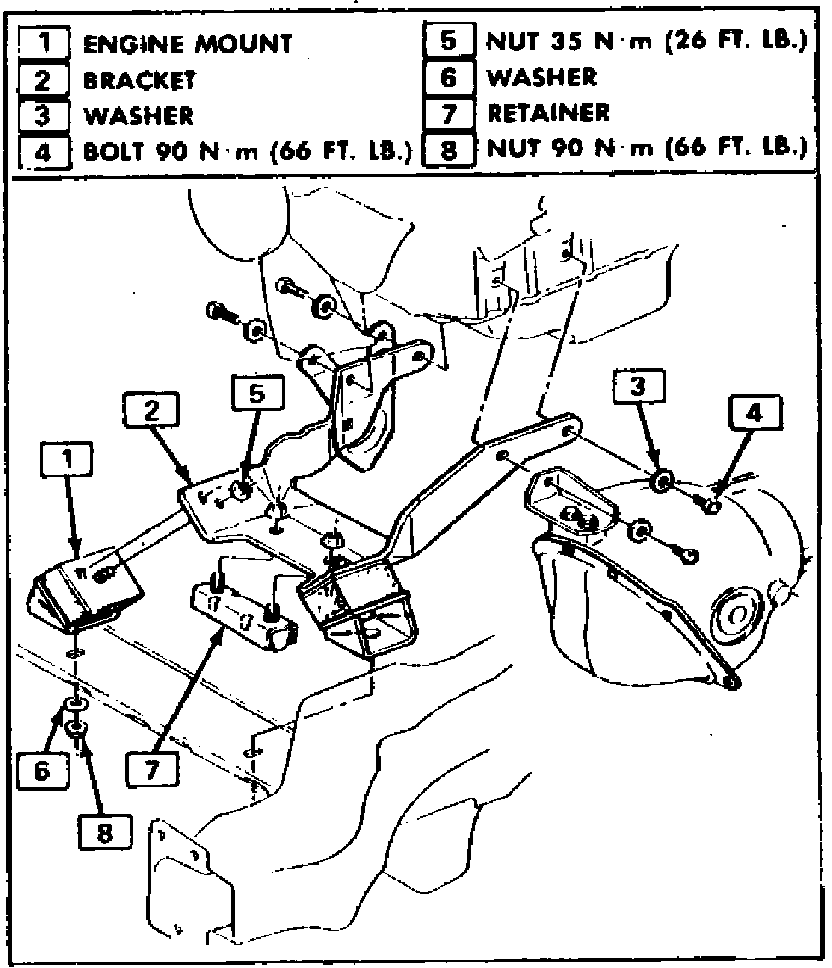

Fig.1 Engine mounts.Riviera:

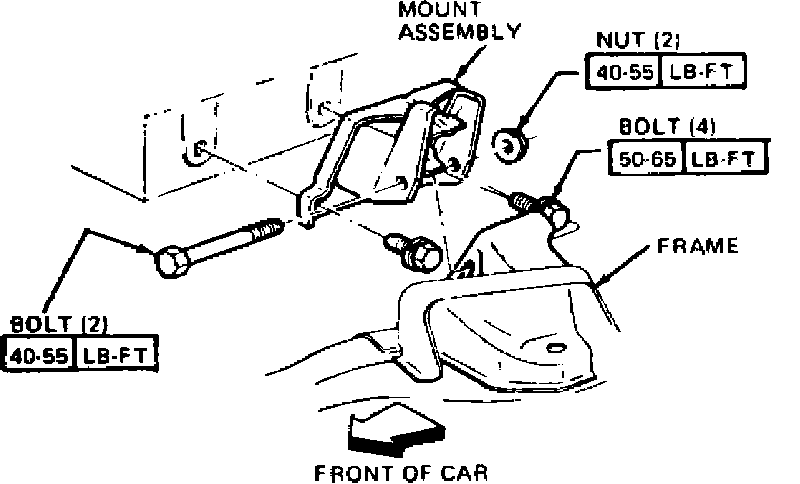

Fig.2 Engine mounts.:

1. Raise car and provide frame support at front of car.
2. Support weight of engine at forward edge of pan.
3. Remove mount to engine block or frame bolts. Raise engine slightly and remove mount to mount bracket bolt and nut. Remove mount.
4. Reverse above procedure to install.
