Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Engine Circuit
Engine Circuit

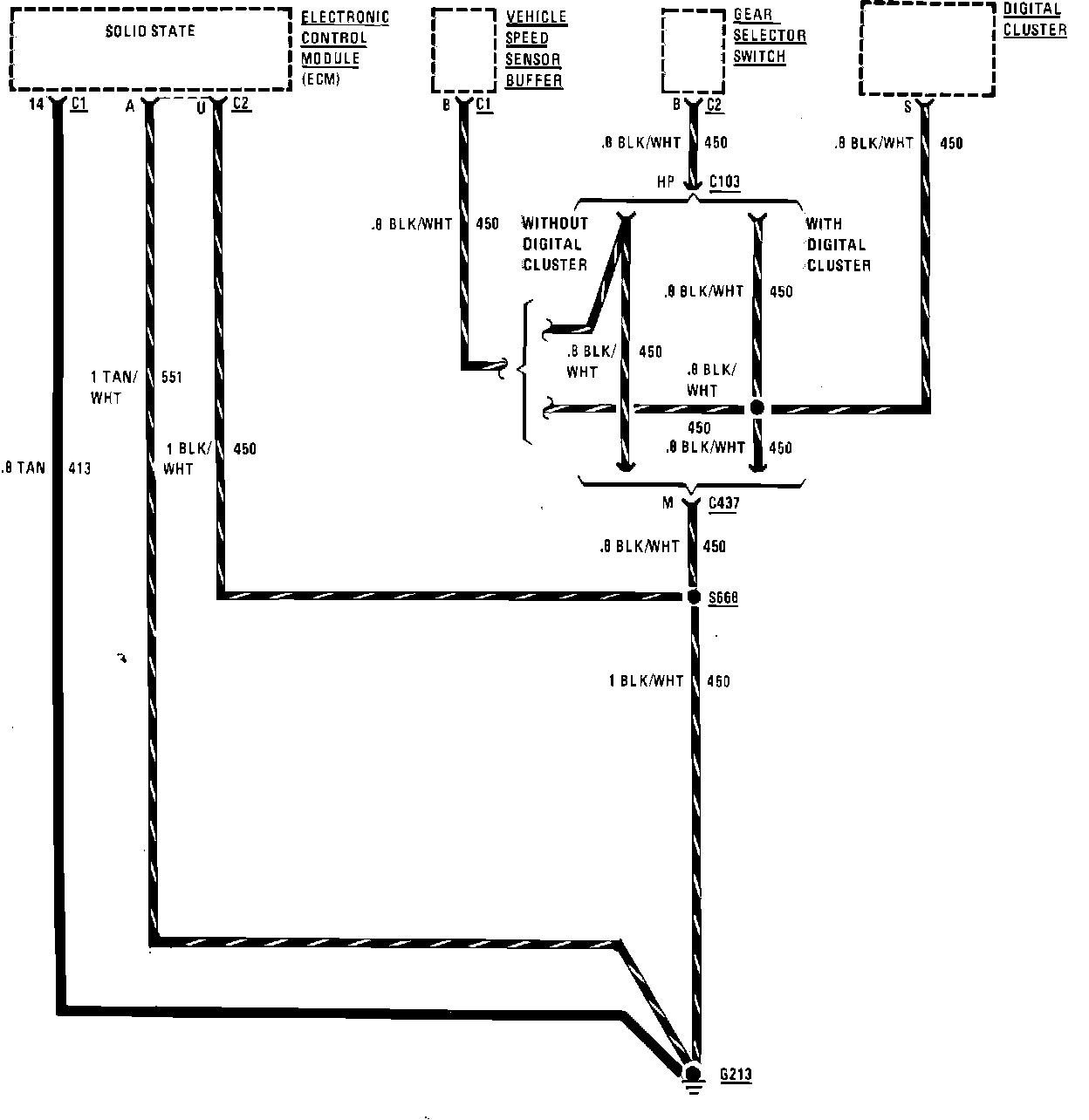

Ground Distribution:
