Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

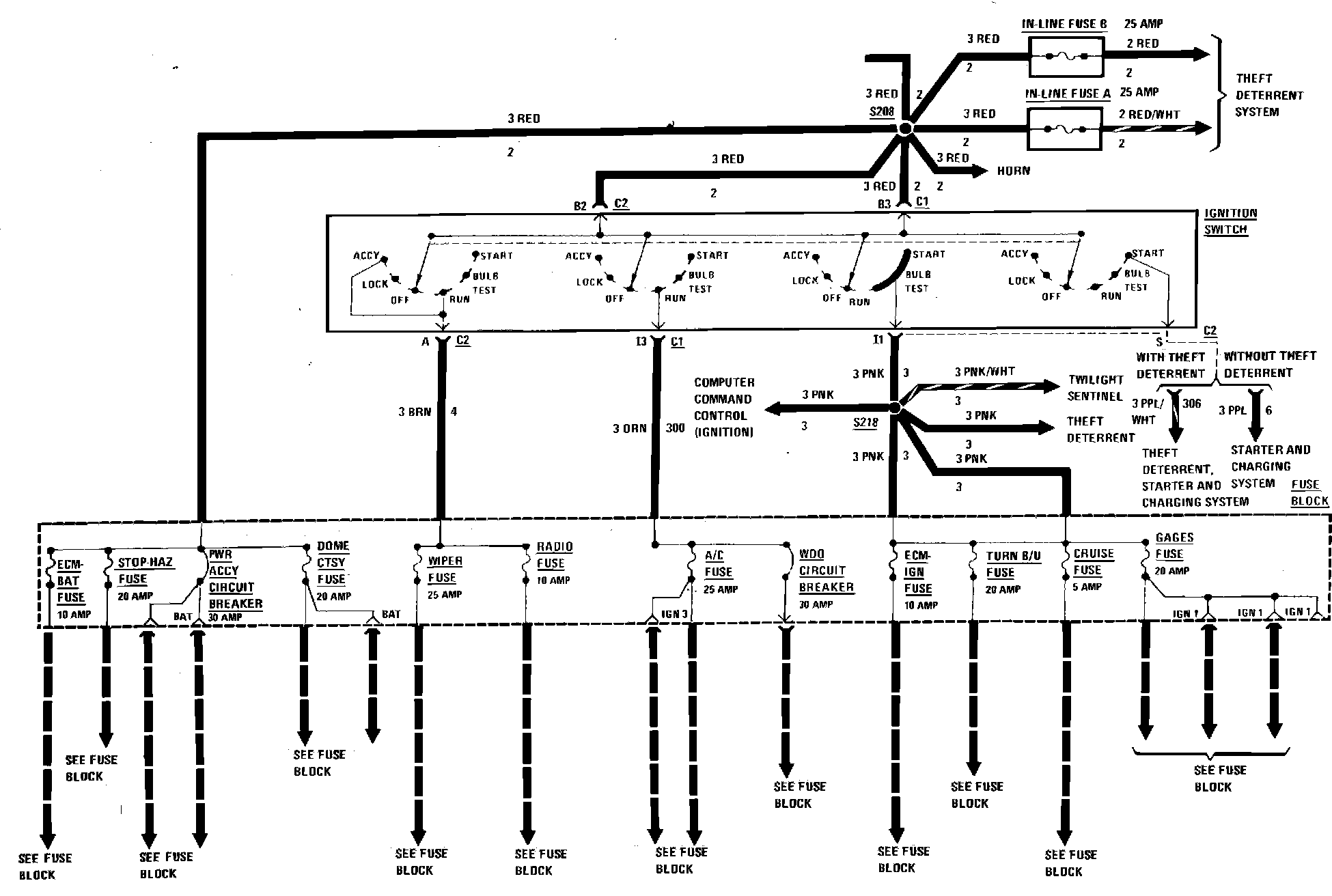

Power Distribution Wiring Circuit
>>
With Twilight Sentinel (Part 2 of 2)
With Twilight Sentinel (Part 2 of 2)
Power Distribution With Twillight Sentinel:
