Choke Unloader Adjustment

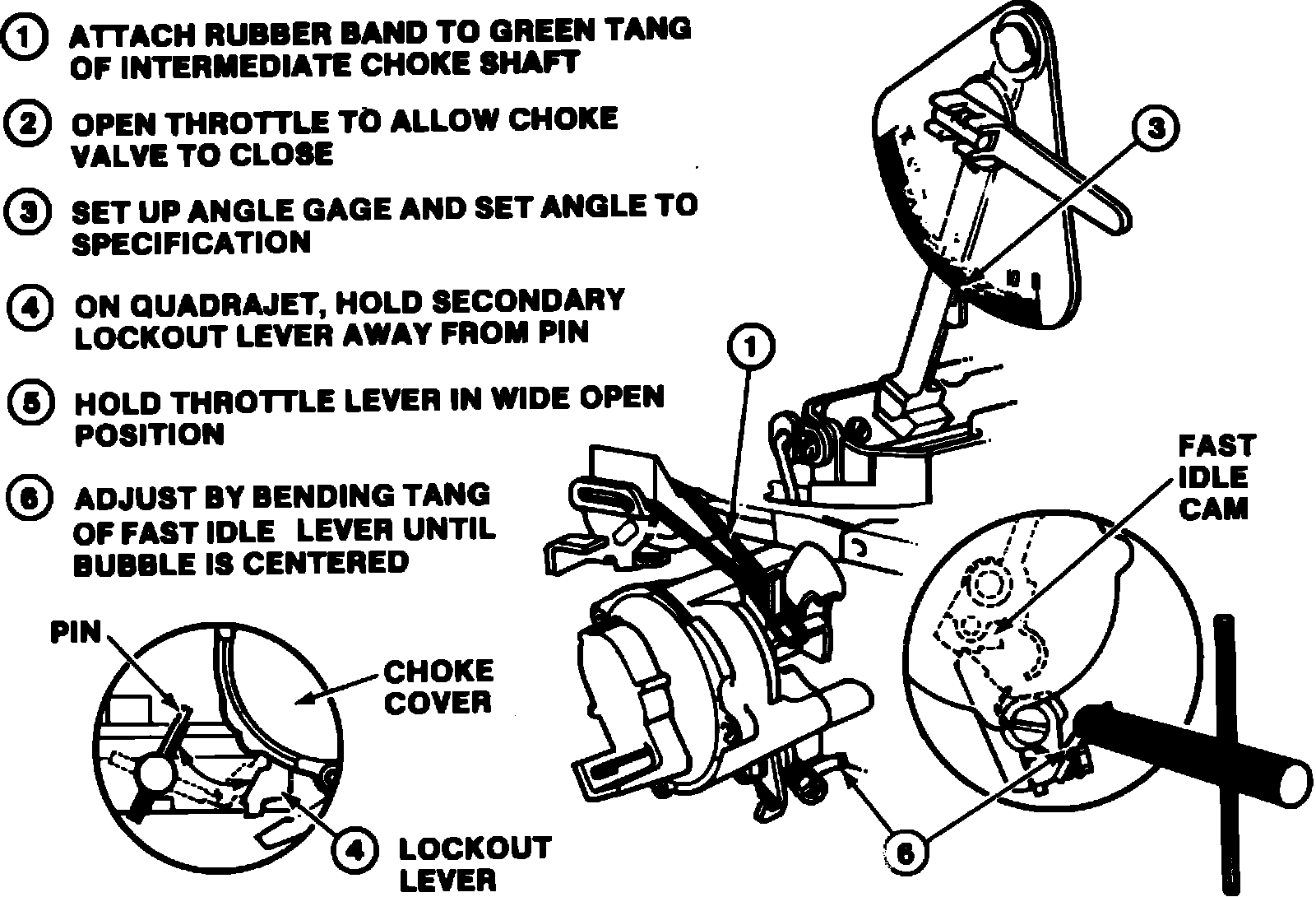

Fig. 17 Choke unloader adjustment:

Choke Unloader
Refer to Fig. 17 for choke unloader adjustments.
