Home >> Buick >> 1985 >> Riviera V8-307 5.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Constant Velocity Joint Boot >> Service and Repair

Constant Velocity Joint Boot: Service and Repair

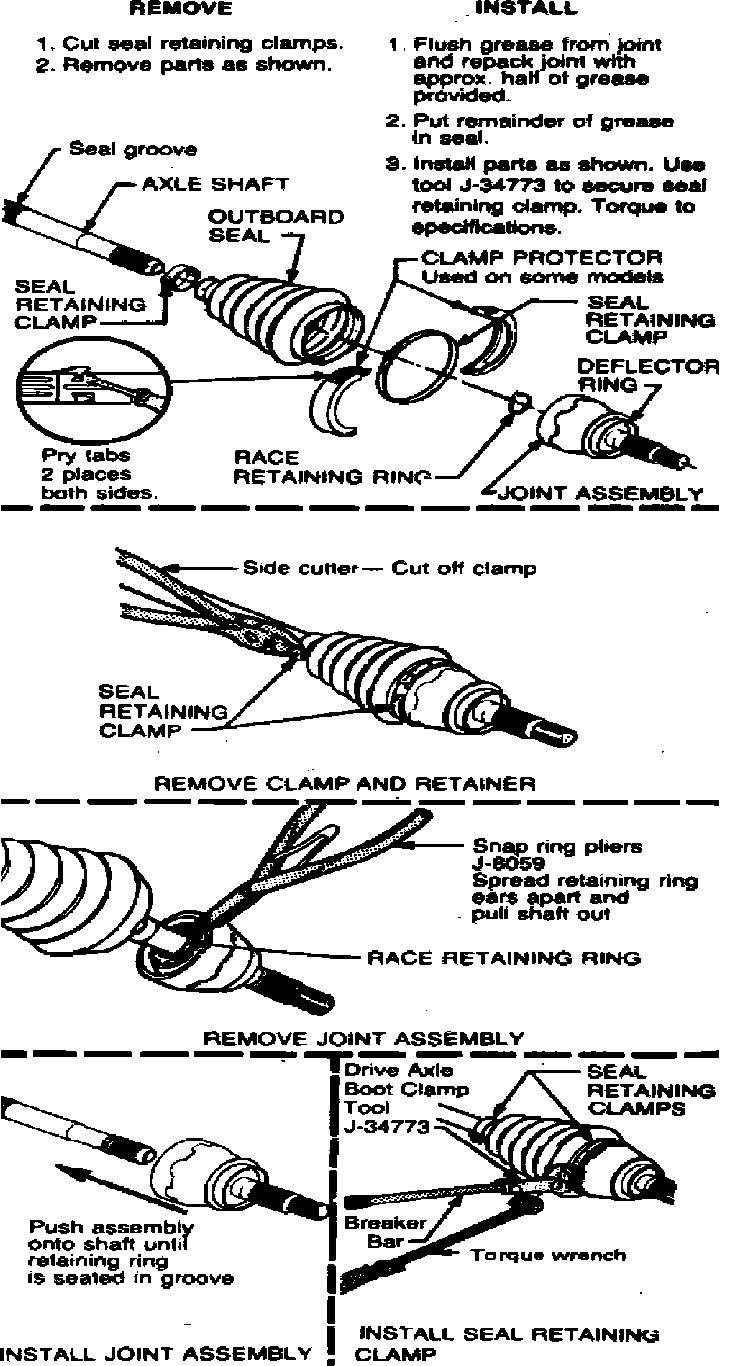

Fig. 9 Outer constant velocity joint seal removal & installation. 1985-88 models:
