Exhaust Gas Recirculation (EGR) System
Exhaust Gas Recirculation (EGR) System

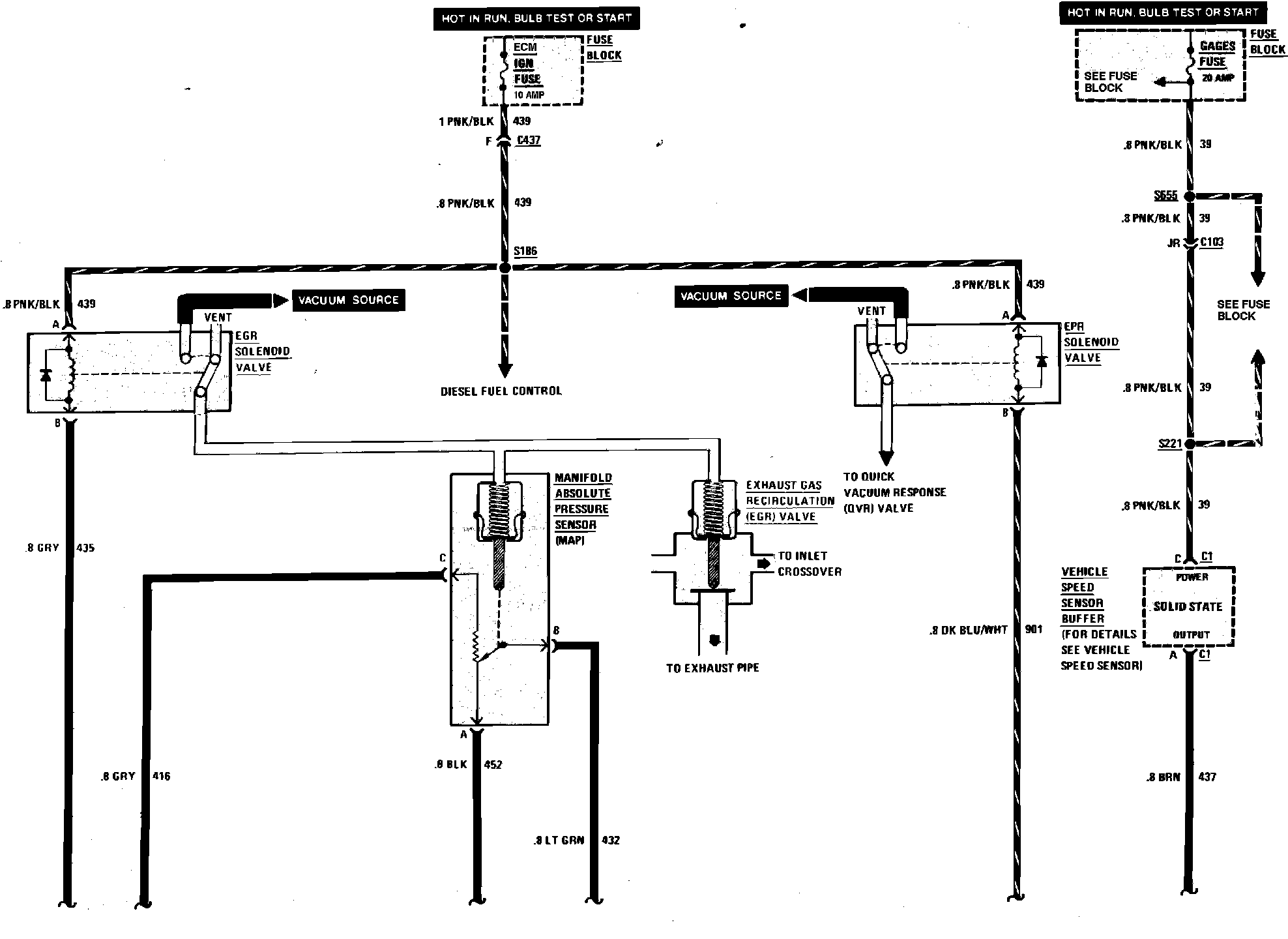

Diesel Exhaust Gas Recirculation Wiring Circuit:
Diesel Exhaust Gas Recirculation Wiring Circuit:
