Diesel Electronic Control (DEC) System
Diesel Electronic Control (DEC) System

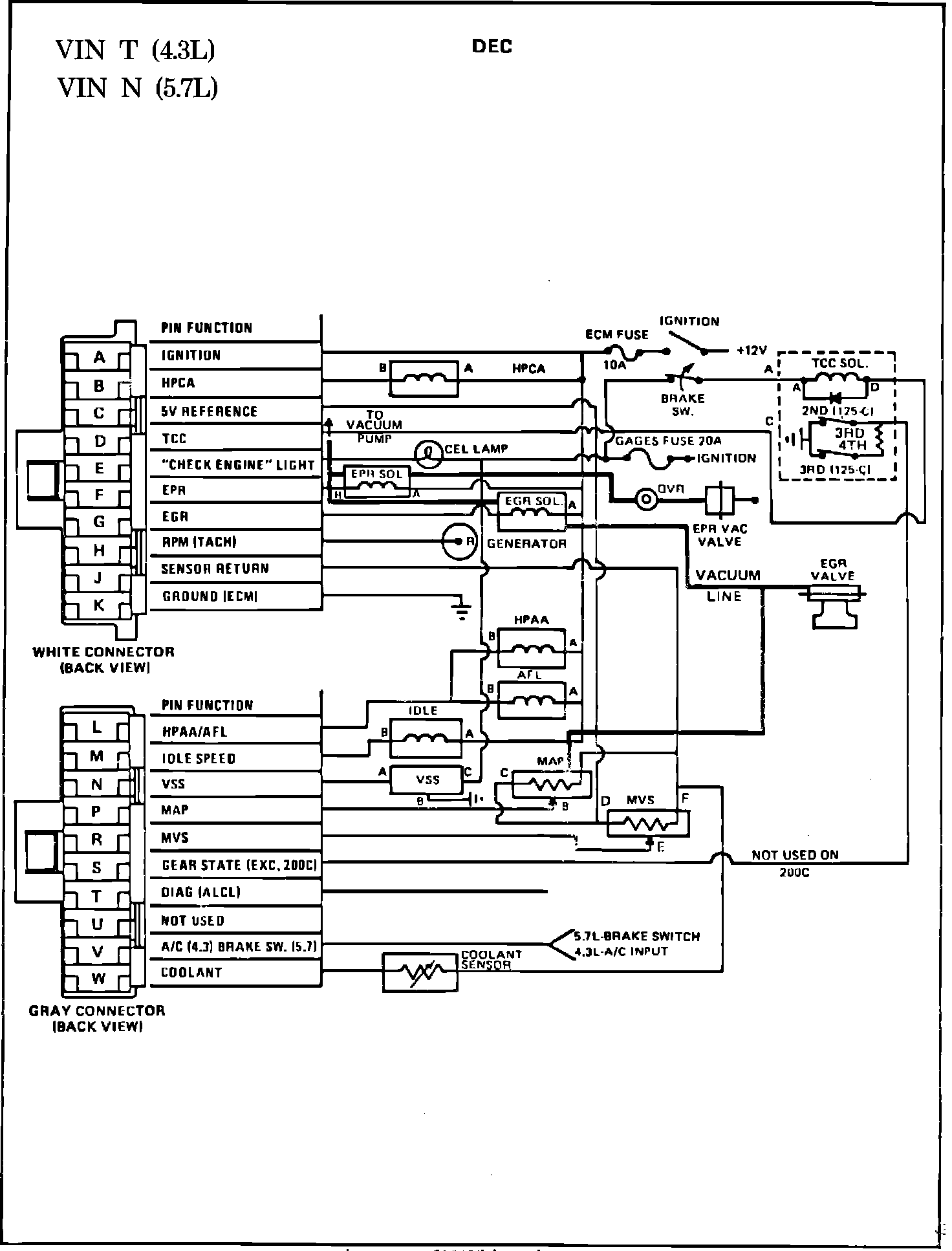

Fig. 072 - DECS Wiring Diagram:
