Throttle Valve or Detent Cable Adjust

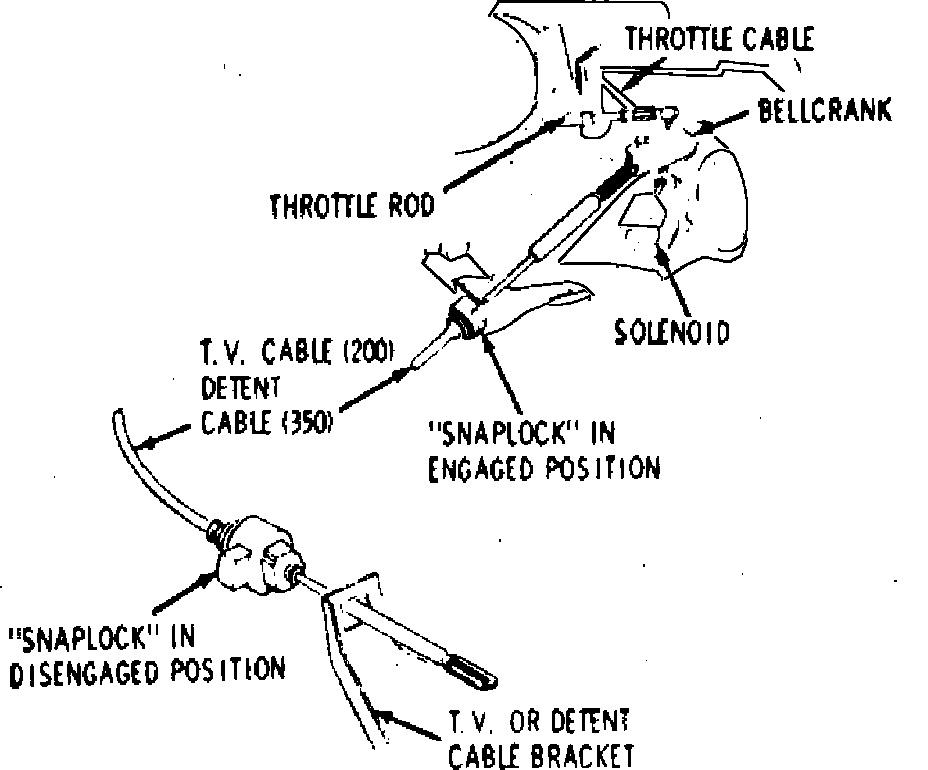

Fig. 30 Throttle valve or detent cable adjustment:

1. Remove throttle rod from bellcrank, Fig. 30.
2. Push snap lock to disengaged position.
3. Rotate bellcrank to full throttle stop position and push in snap lock until flush with cable end fitting. Release bellcrank.
4. Connect the throttle rod.
