Home >> Buick >> 1985 >> Skyhawk L4-112 1.8L Turbo VIN J FI >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Diagrams >> Electrical Diagrams >> Tailgate Release >> Automatic Transmission

Automatic Transmission

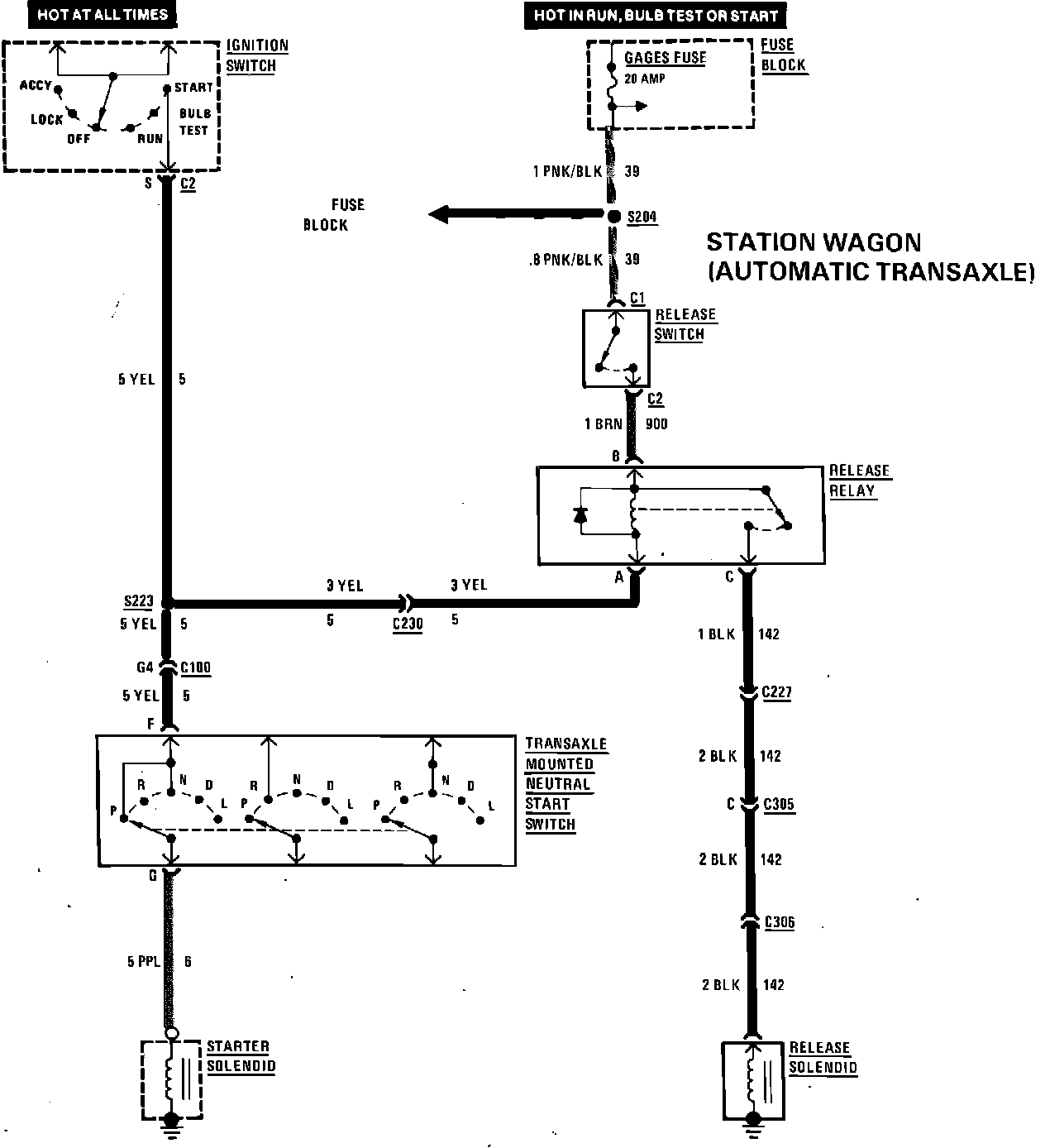

Tailgate Release Wiring Circuit (With Automatic Transaxle):
