Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Skyhawk L4-112 1.8L Turbo VIN J FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top
Convertible Top

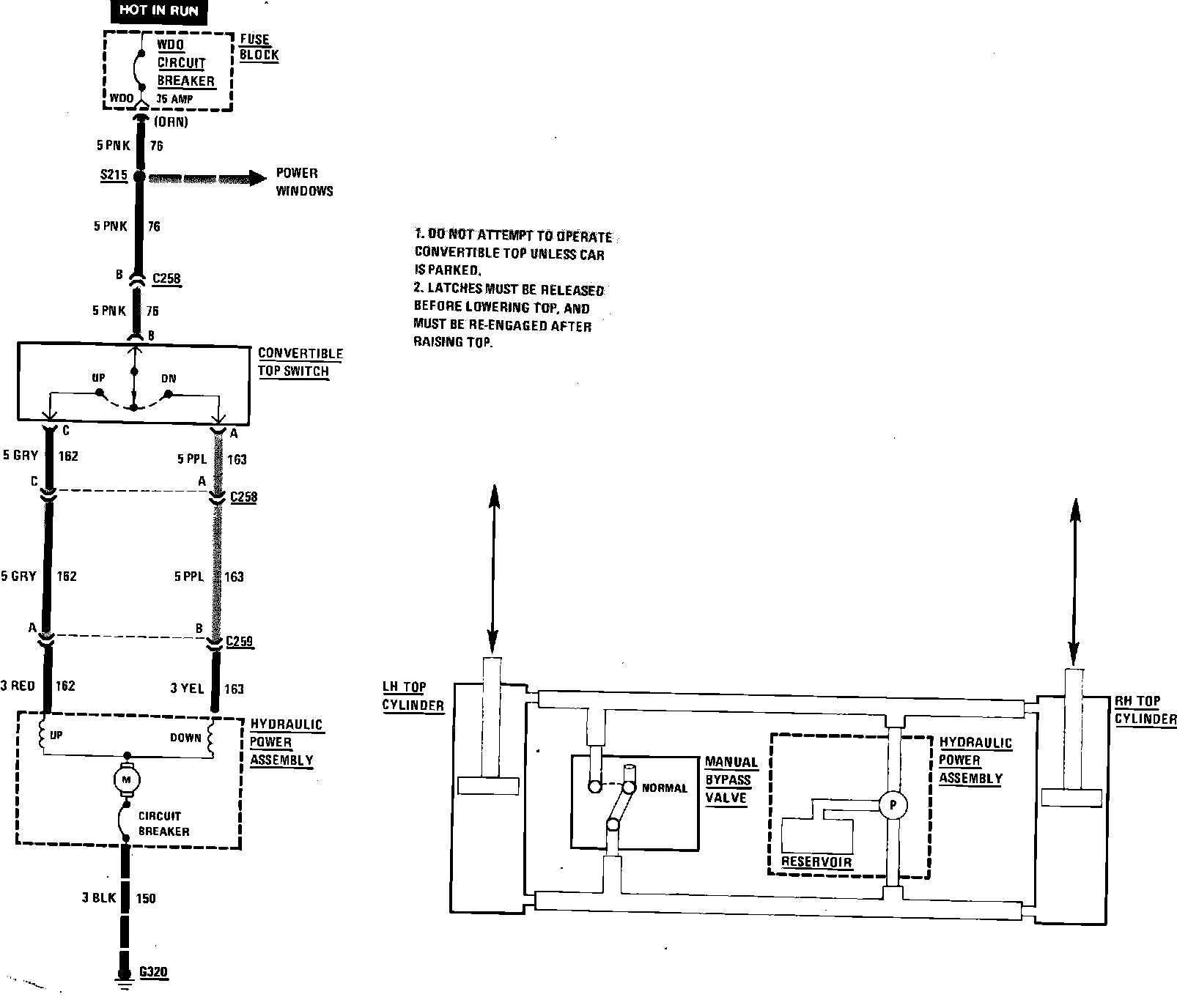

Convertible Top Wiring Circuit:
