Less Gauges Cluster

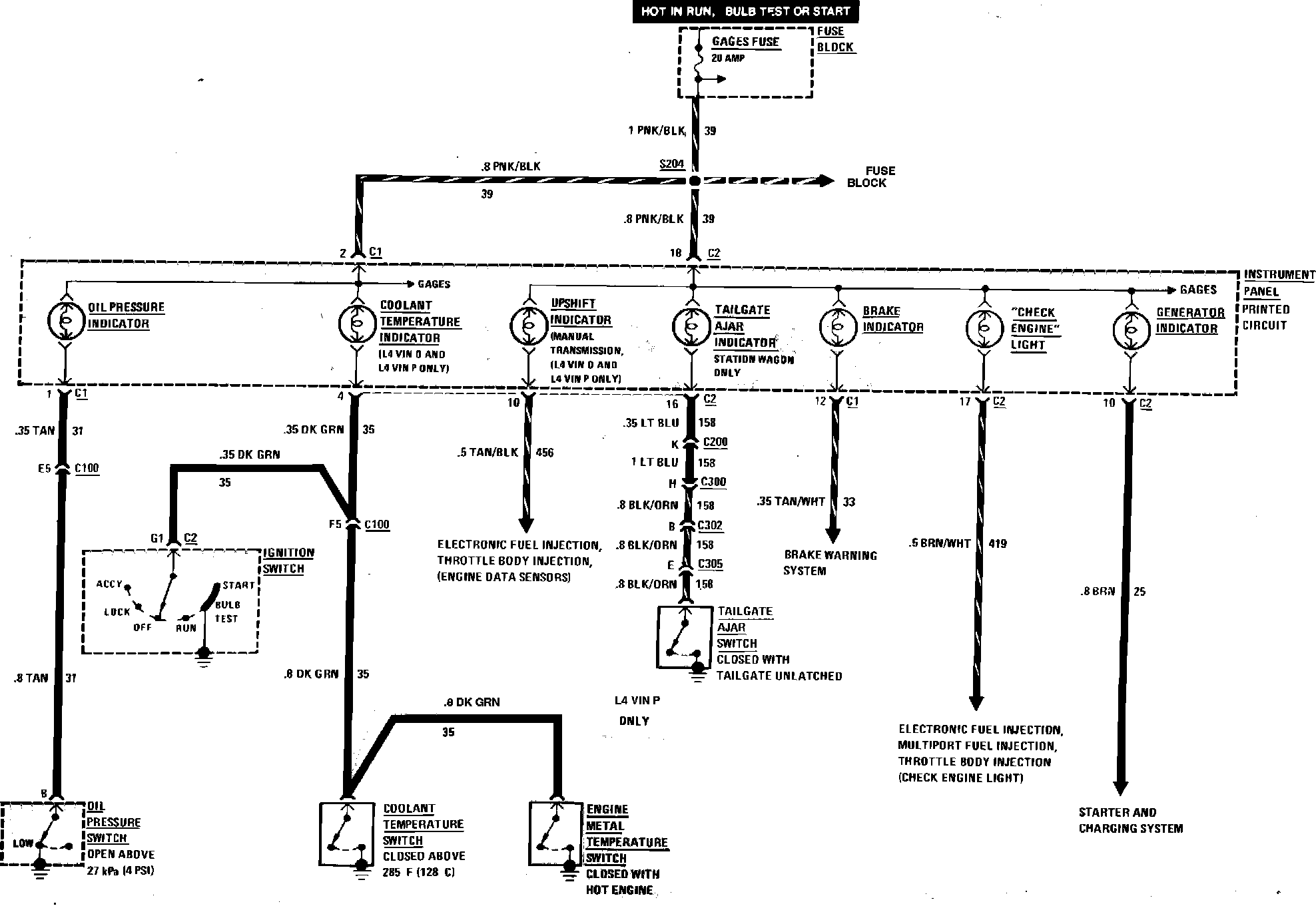

Instrument Panel Wiring Circuit (Less Gauges):



Instrument Panel Wiring Circuit (Less Gauges):
