Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Gauges Cluster
With Gauges Cluster

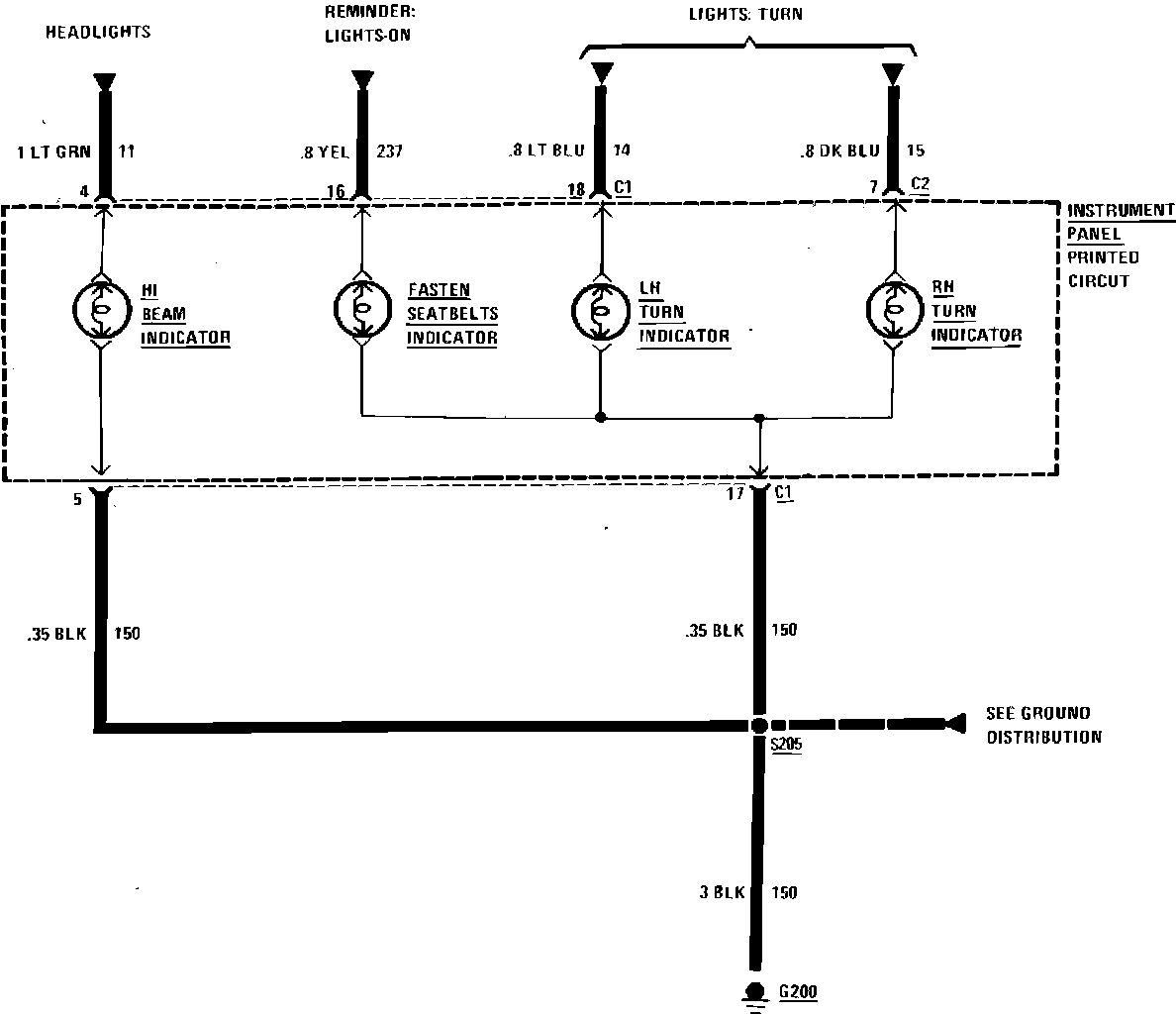

Instrument Panel Wiring Circuit (With Gauges):

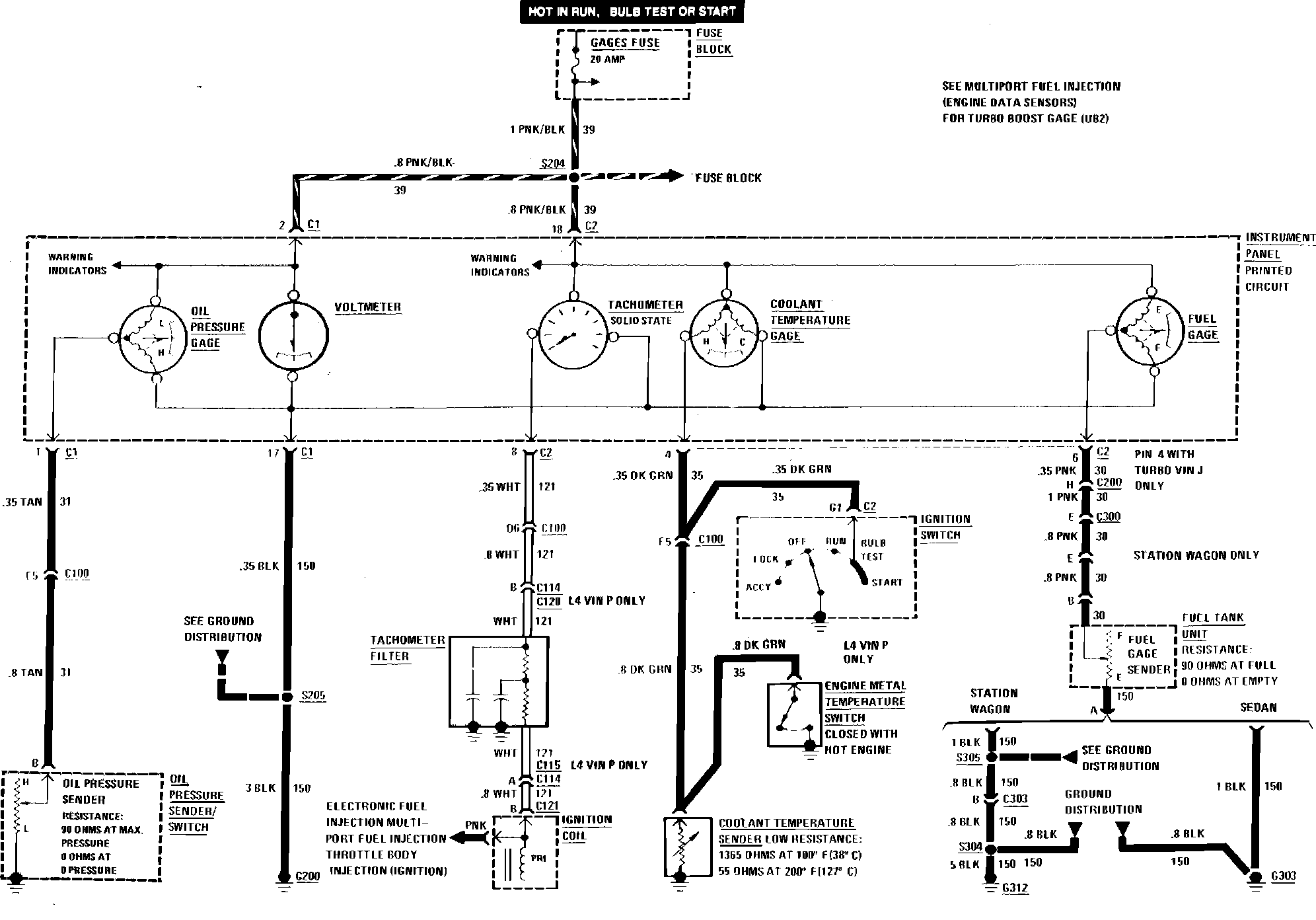

Instrument Panel Wiring Circuit (With Gauges):
Instrument Panel Wiring Circuit (With Gauges):
