Home >> Buick >> 1985 >> Skyhawk L4-112 1.8L Turbo VIN J FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> Part 1 of 3

Part 1 of 3

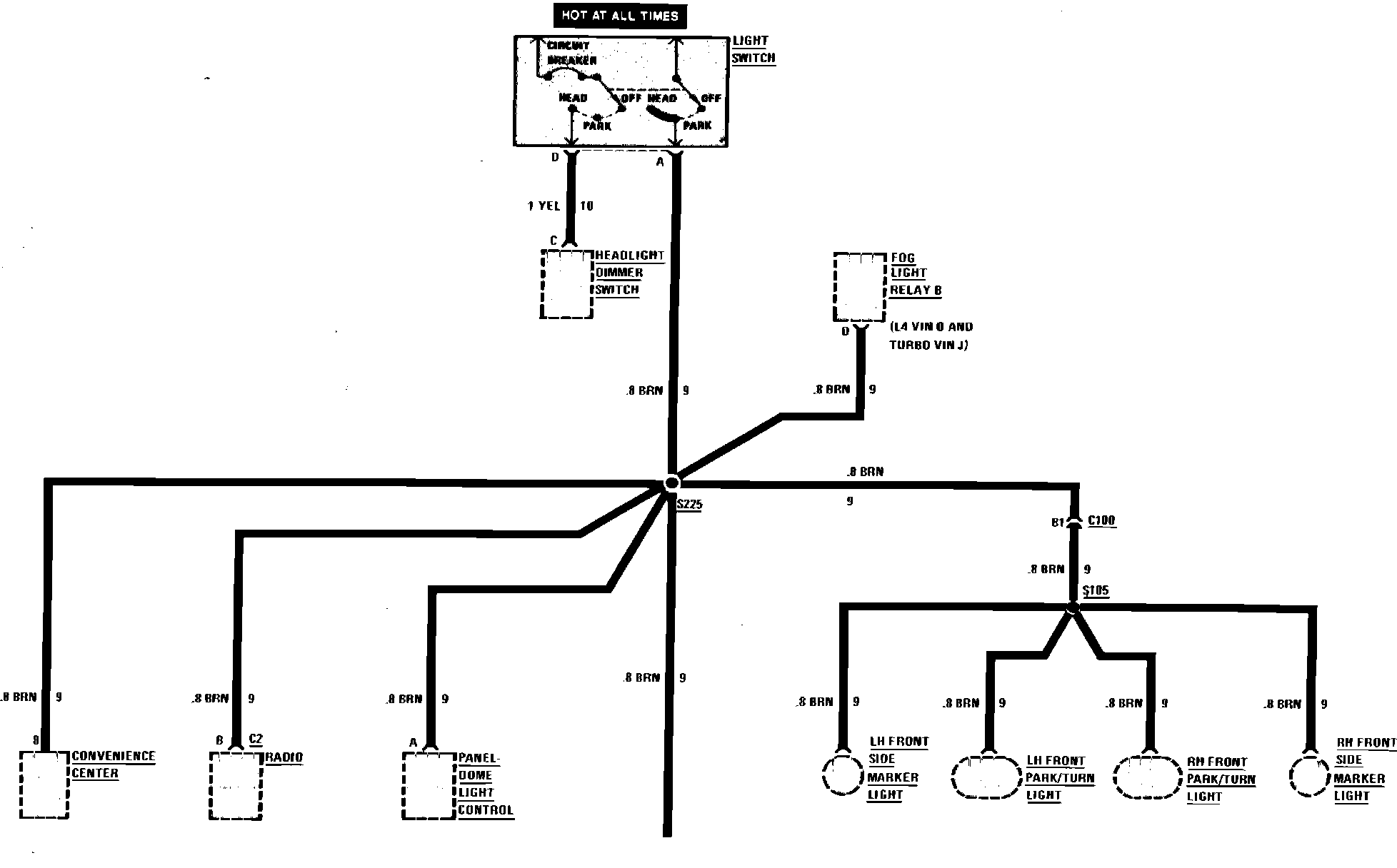

Light Switch Details:
