Idle Speed Control & Vehicle Data Sensors

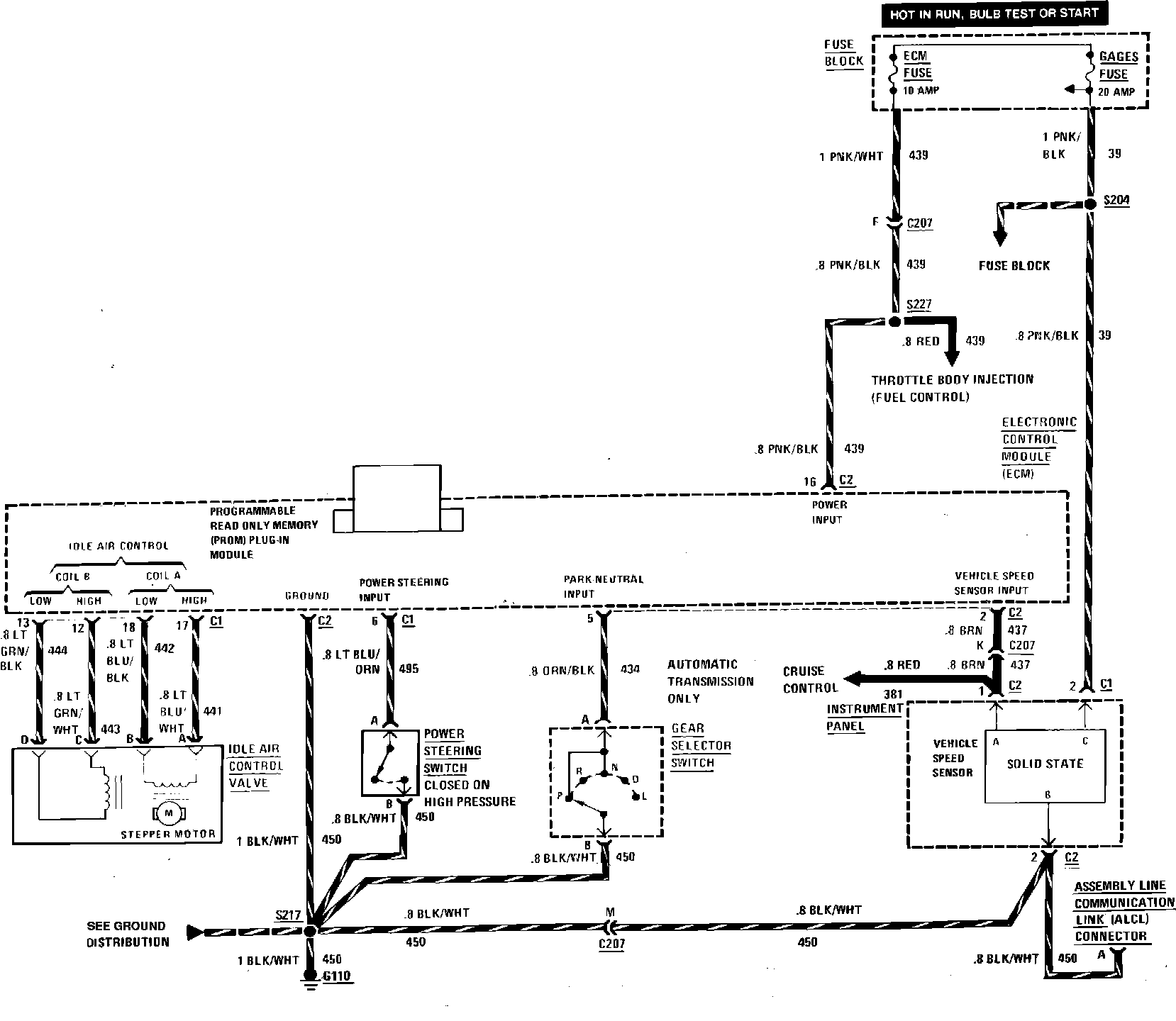

Throttle Body Injection (Idle Speed Control & Vehicle Data Sensors) Wiring Circuit:
