Overhead Cam

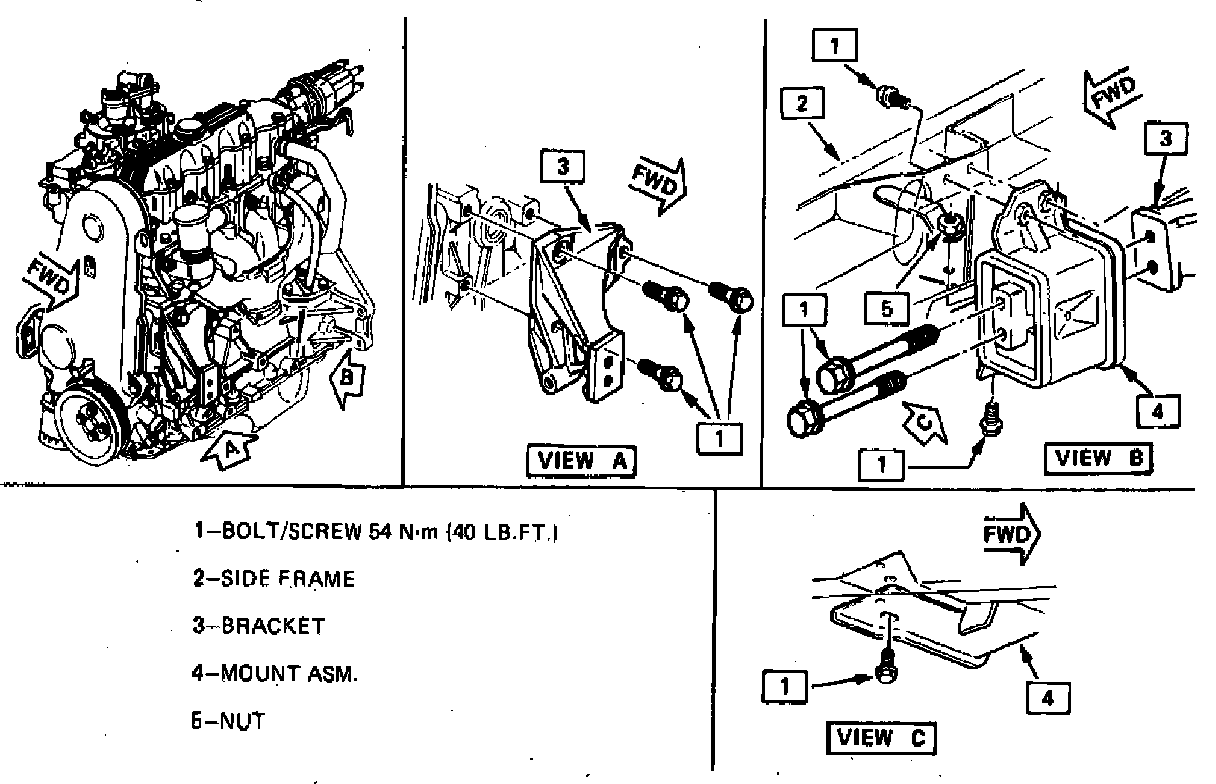

Fig. 3 Front engine mounts. 1985---88:

1985-88
1. Disconnect battery ground cable.
2. Support engine, then remove two mount to bracket attaching bolts, Fig. 3.
3. Remove two top mount attaching bolts, then raise and support vehicle.
4. Remove lower mount attaching bolt, then the engine mount.
5. Reverse procedure to install.

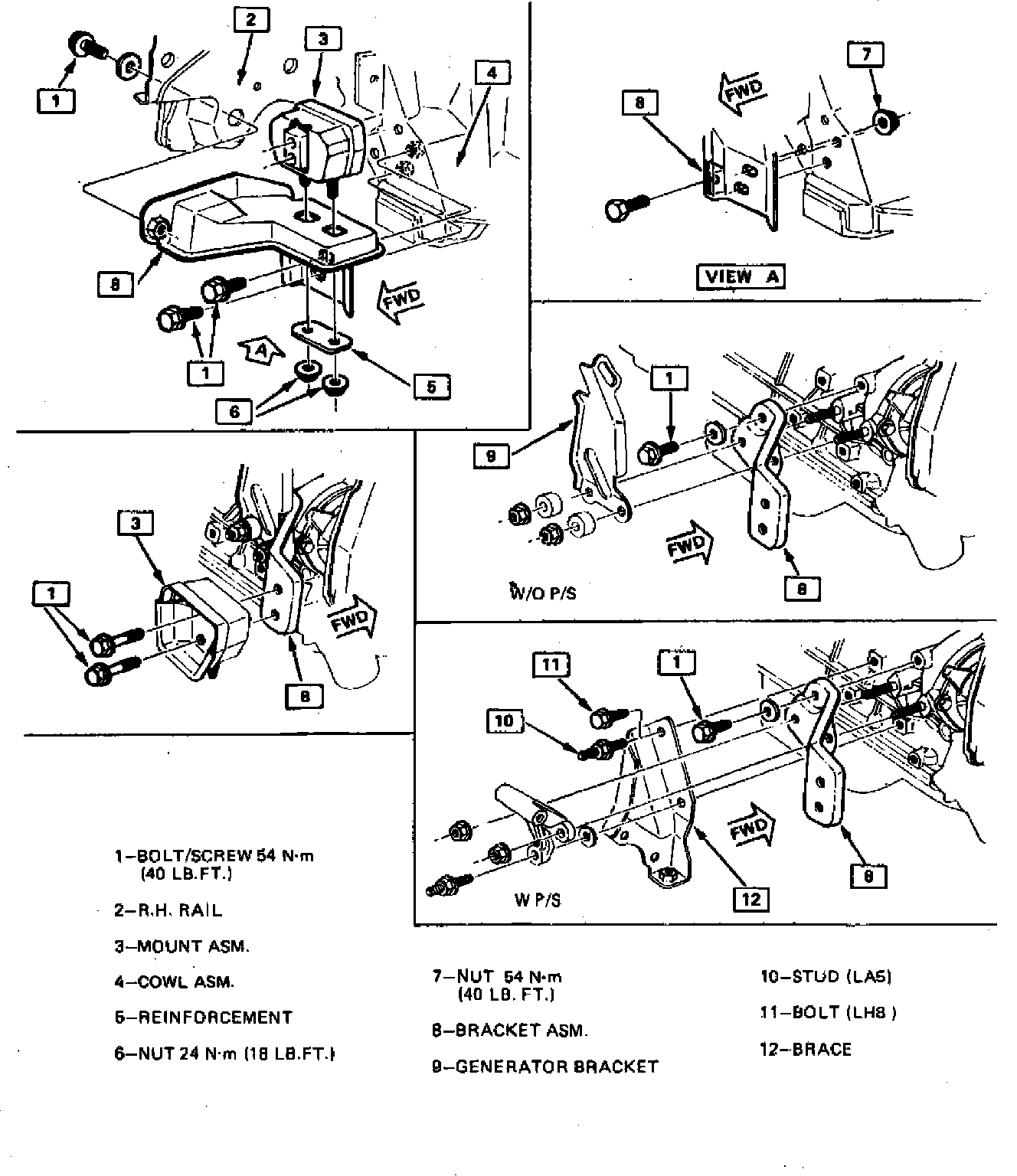

Fig. 5 Rear engine mounts. 1985---88:

1985-88
1. Disconnect battery ground cable.
2. Support engine, then remove two mount to bracket attaching bolts, Fig. 5.
3. Raise and support vehicle.
4. Remove two lower mount attaching nuts and reinforcement, then the engine mount.
5. Reverse procedure to install.
