Home >> Buick >> 1985 >> Skyhawk L4-112 1.8L VIN 0 TBI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic/Powertrain Control Module (ECM/PCM) >> VIN O (1.8L)

VIN O (1.8L)

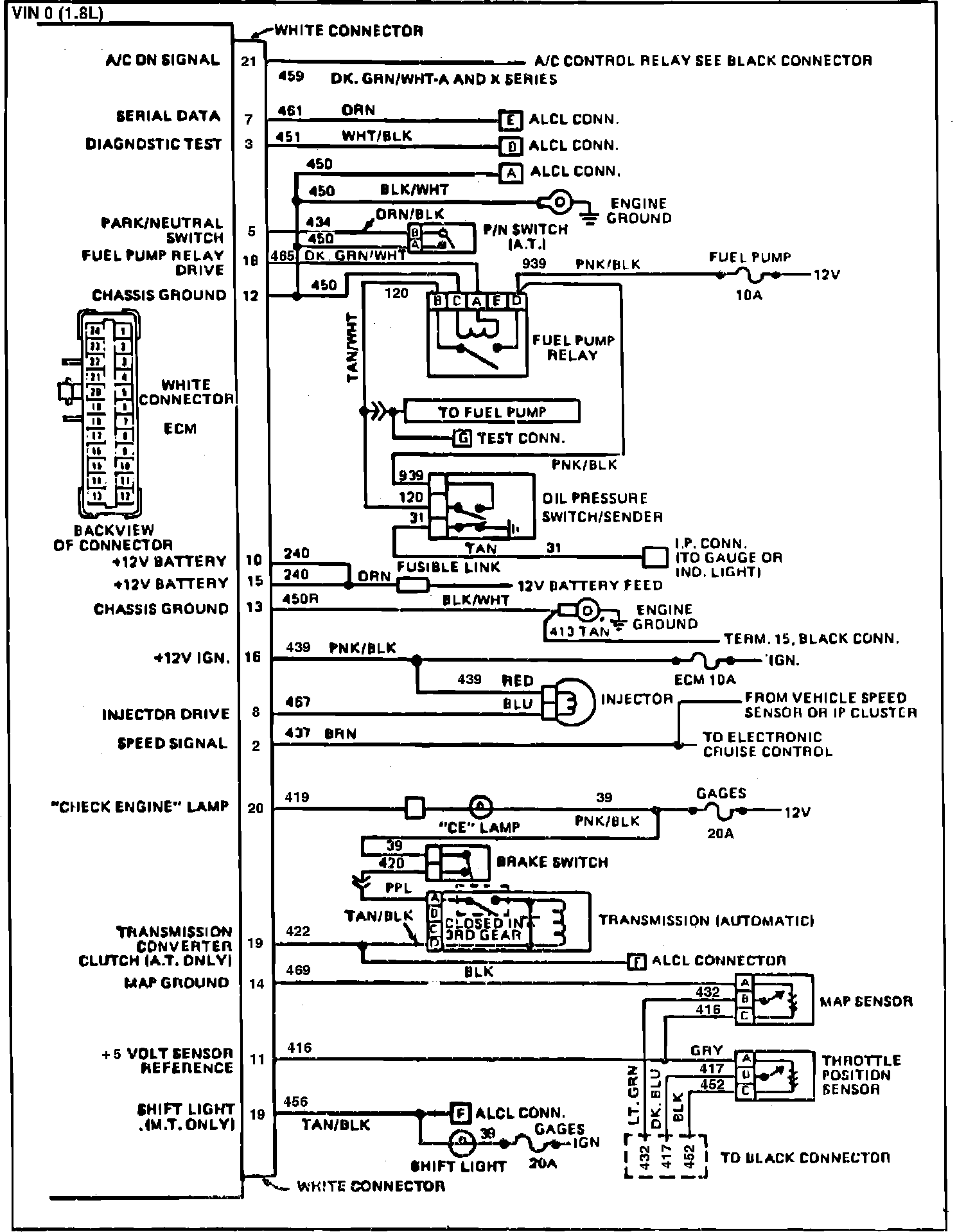

Fig. 028 ECM Wiring Diagrams (1 of 2):

Fig. 029 ECM Wiring Diagrams (2 of 2):
