Home >> Buick >> 1985 >> Skyhawk L4-112 1.8L VIN 0 TBI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Powertrain Controls >> With Throttle Body Injection (TBI) >> Engine Data Sensors & Torque Converter Clutch

Engine Data Sensors & Torque Converter Clutch

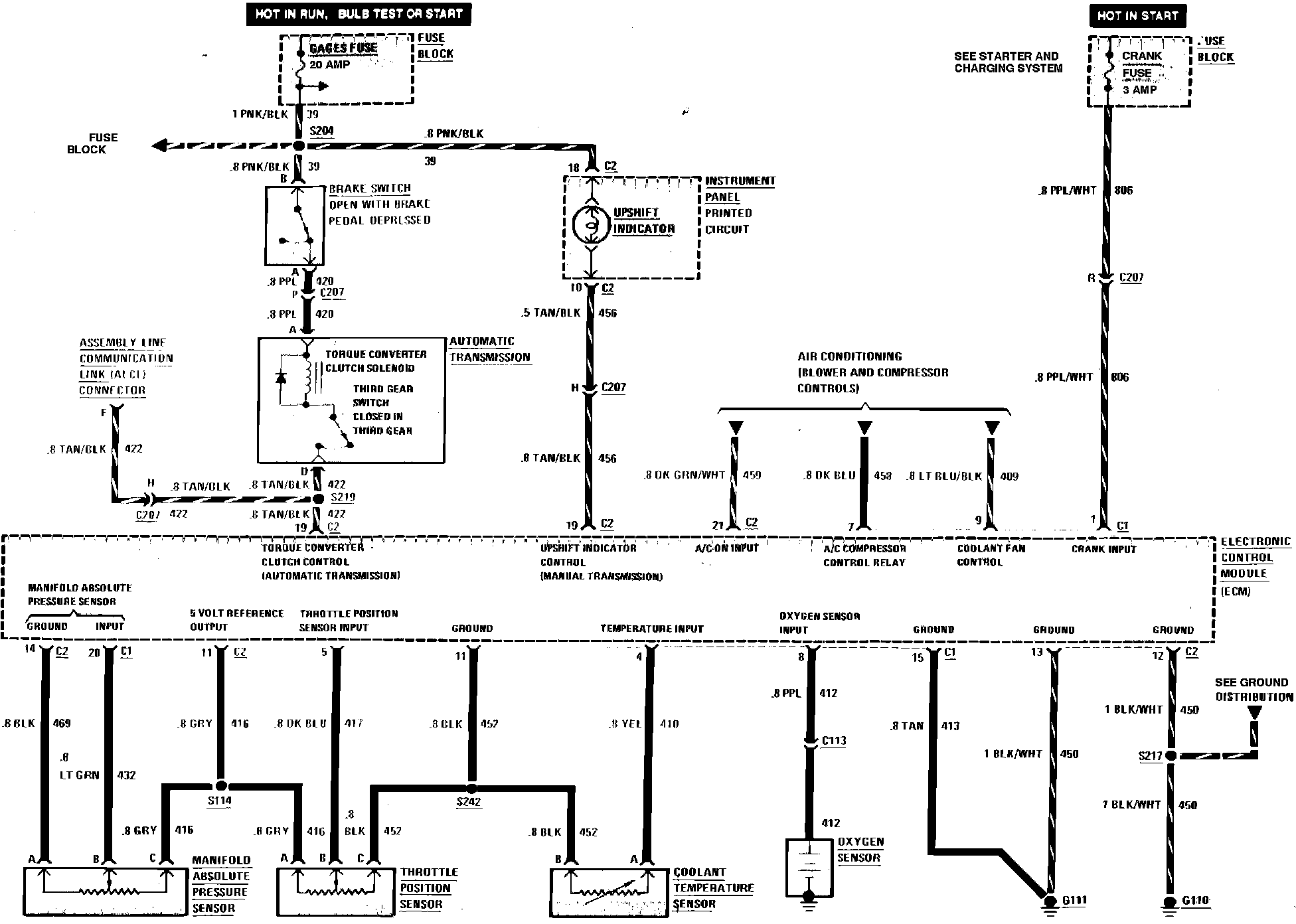

Throttle Body Injection (Engine Data Sensors & Torque Converter Clutch) Wiring Circuit:
