Chart C-12 Engine Cooling Fan: VIN P (2.0L)

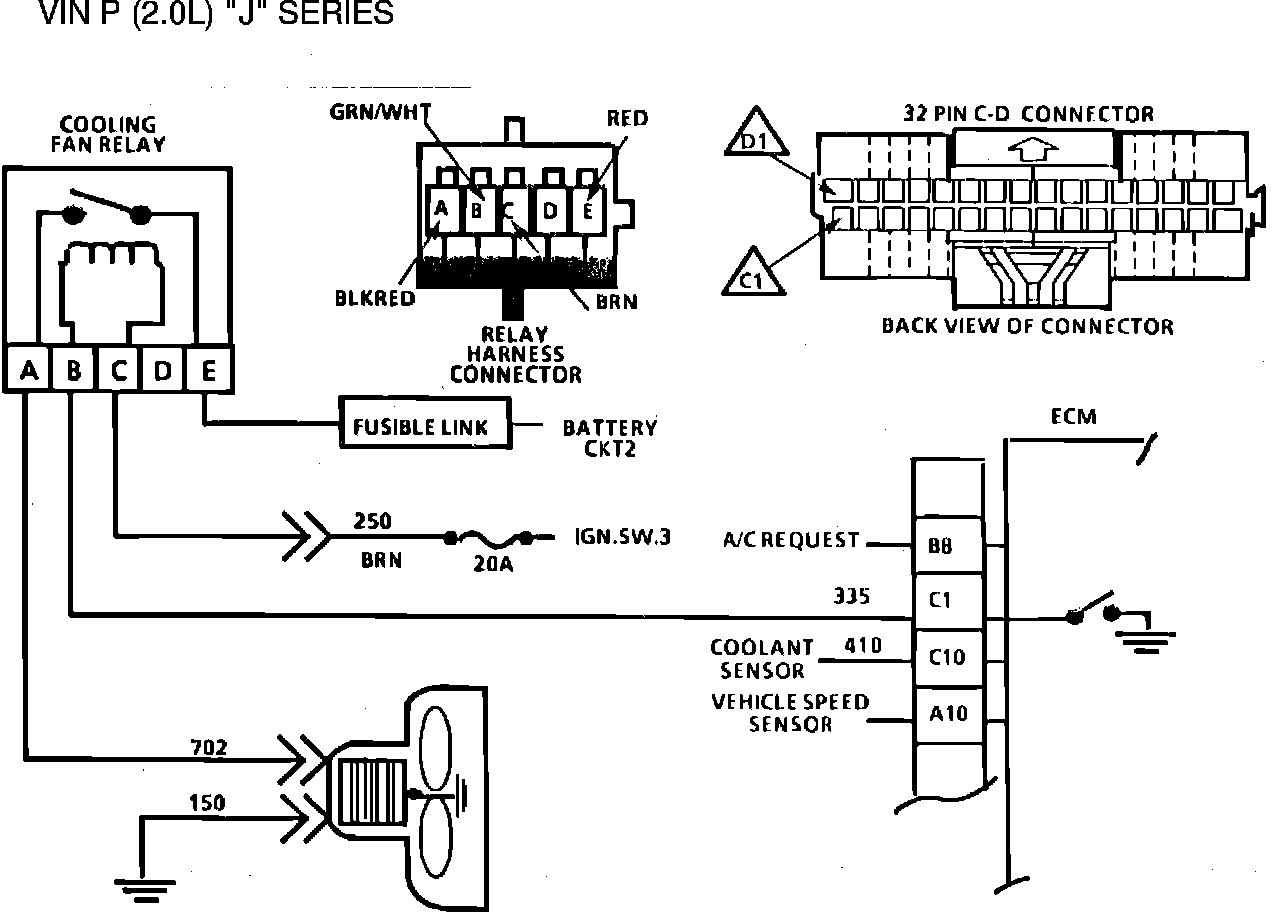

Fig. 093 - Wiring Diagram for Chart C-12 Engine Cooling Fan. VIN P:

CHART C-12

ENGINE COOLING FOR CONTROL

2.0L "J" SERIES,

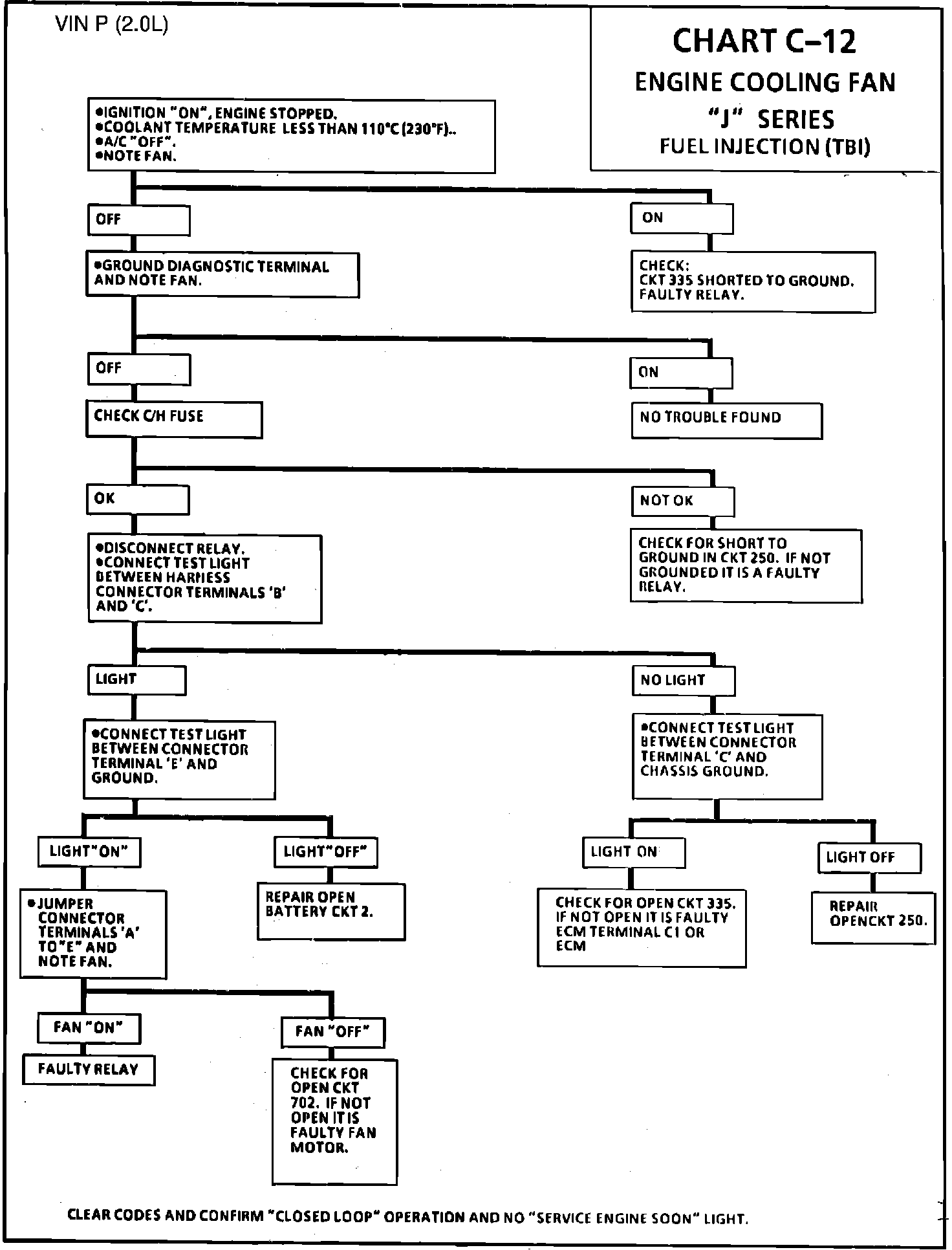

Fig. 092 Chart C-12 Engine Cooling Fan:

The engine cooling fan is turned on when the fan control relay is energized by the ECM.
Fan will be on when:
- Coolant temperature is greater than 110°C (230°F).
- A/Conditioning on and vehicle speed less than 40 MPH
- Code 14 or 15, coolant sensor failure
