With Air Conditioning

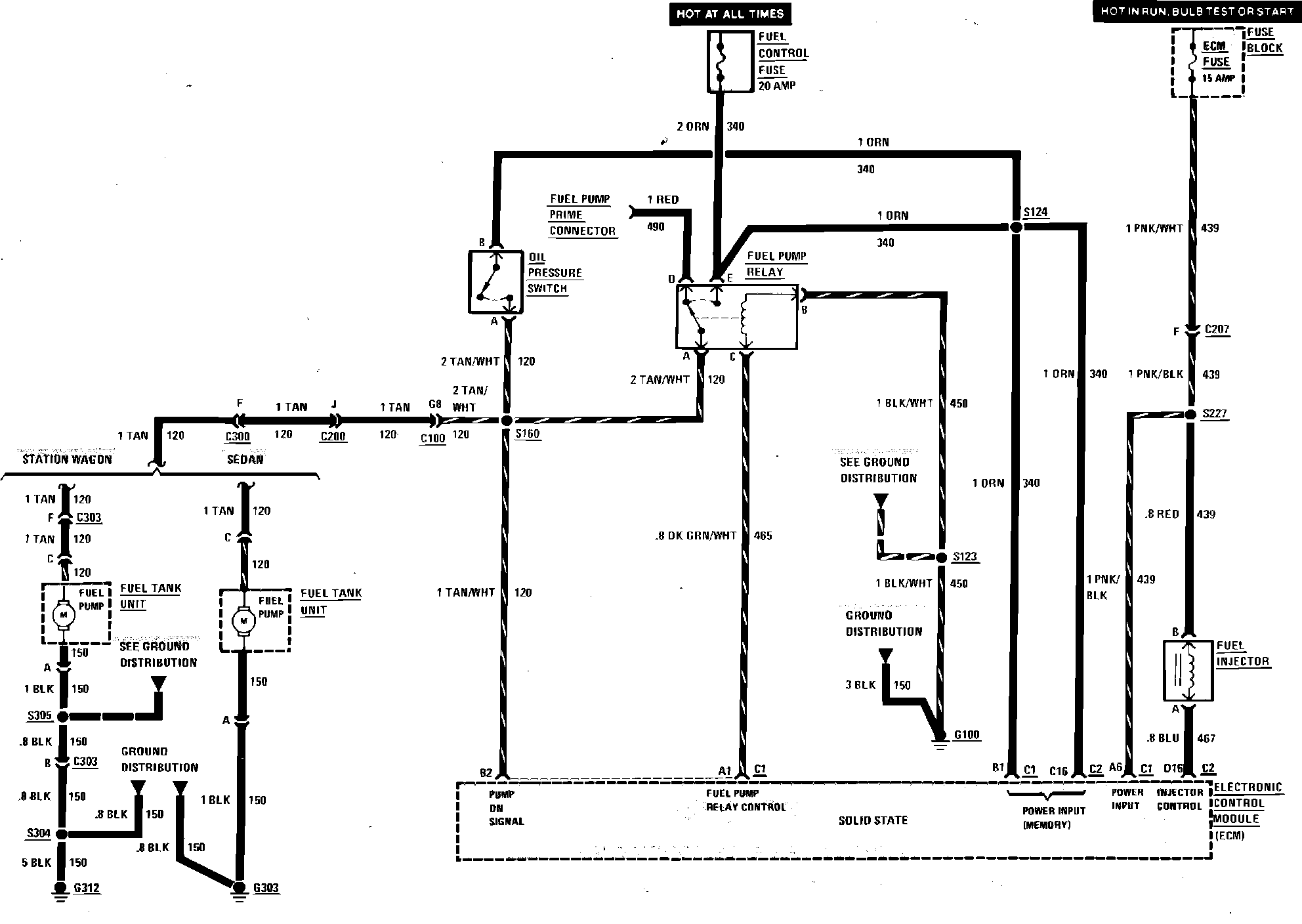

Electronic Fuel Injection (Fuel Control With Air Conditioning) Wiring Circuit:
