With Spring Mount

CAUTION: It is not necessary to disconnect the brake hose, however, use caution not to twist or kink hose.

Removing Outboard Spring And Lining:

1. Remove shoe and lining assemblies from caliper.

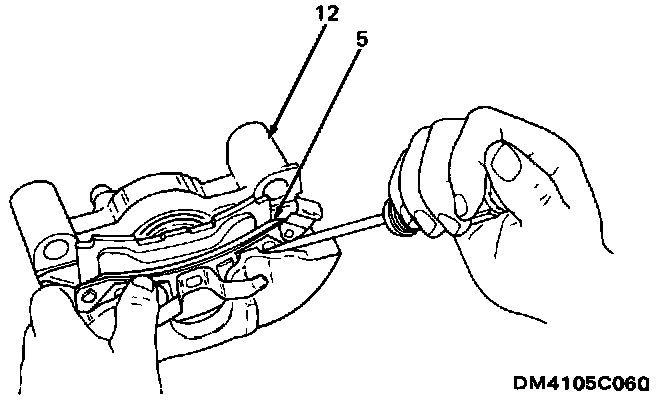

2. To remove outboard shoe and lining use screwdriver to disengage buttons on shoe from holes in caliper.
3. Remove sleeves from mounting bolt holes.
4. Remove bushings from grooves in mounting bolt holes.
5. Position piston to bottom of bore.
