Brake Warning Indicator
>>
Less Vacuum Pump
Less Vacuum Pump

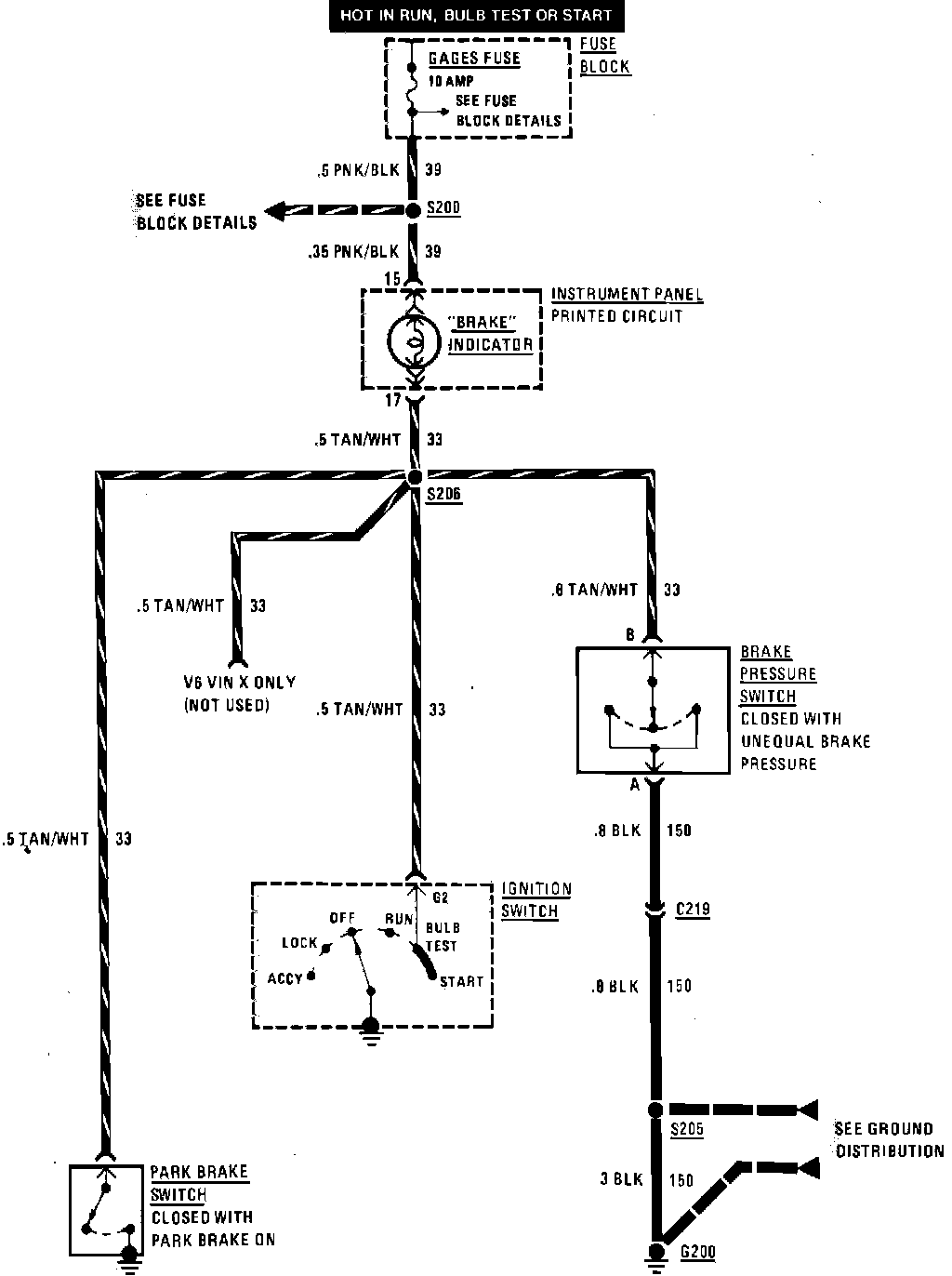

Fig. 18 Brake Warning System Wiring Circuit. Less Vacuum Pump:
