Clock

Fig. 27 Cigar Lighter, Clock & Interior Lights Wiring Circuit. Part 1 of 2:

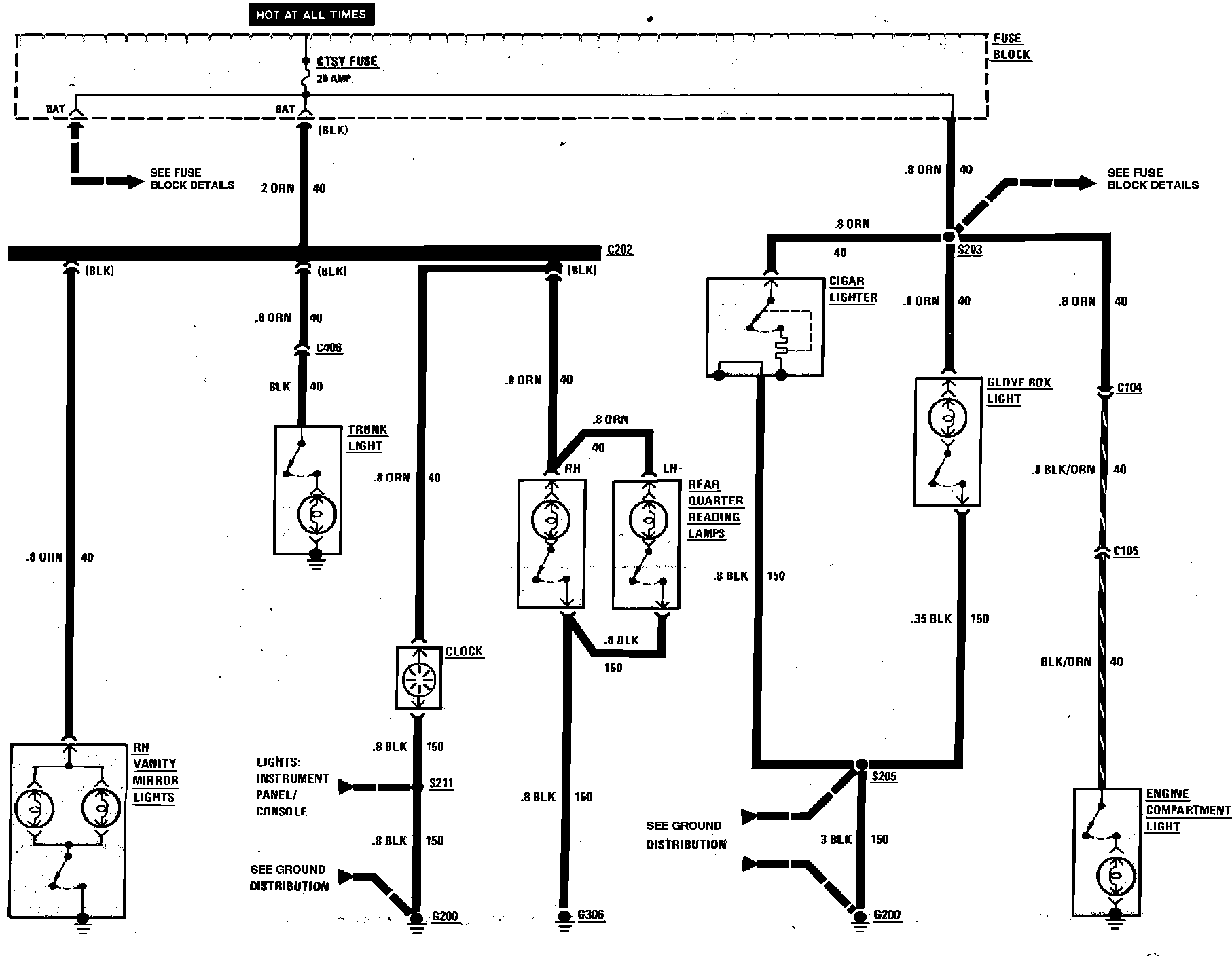

Fig. 27 Cigar Lighter, Clock & Interior Lights Wiring Circuit. Part 2 of 2:
