ENG Data Sensors, Torque Convertor Clutch & Upshift Indic

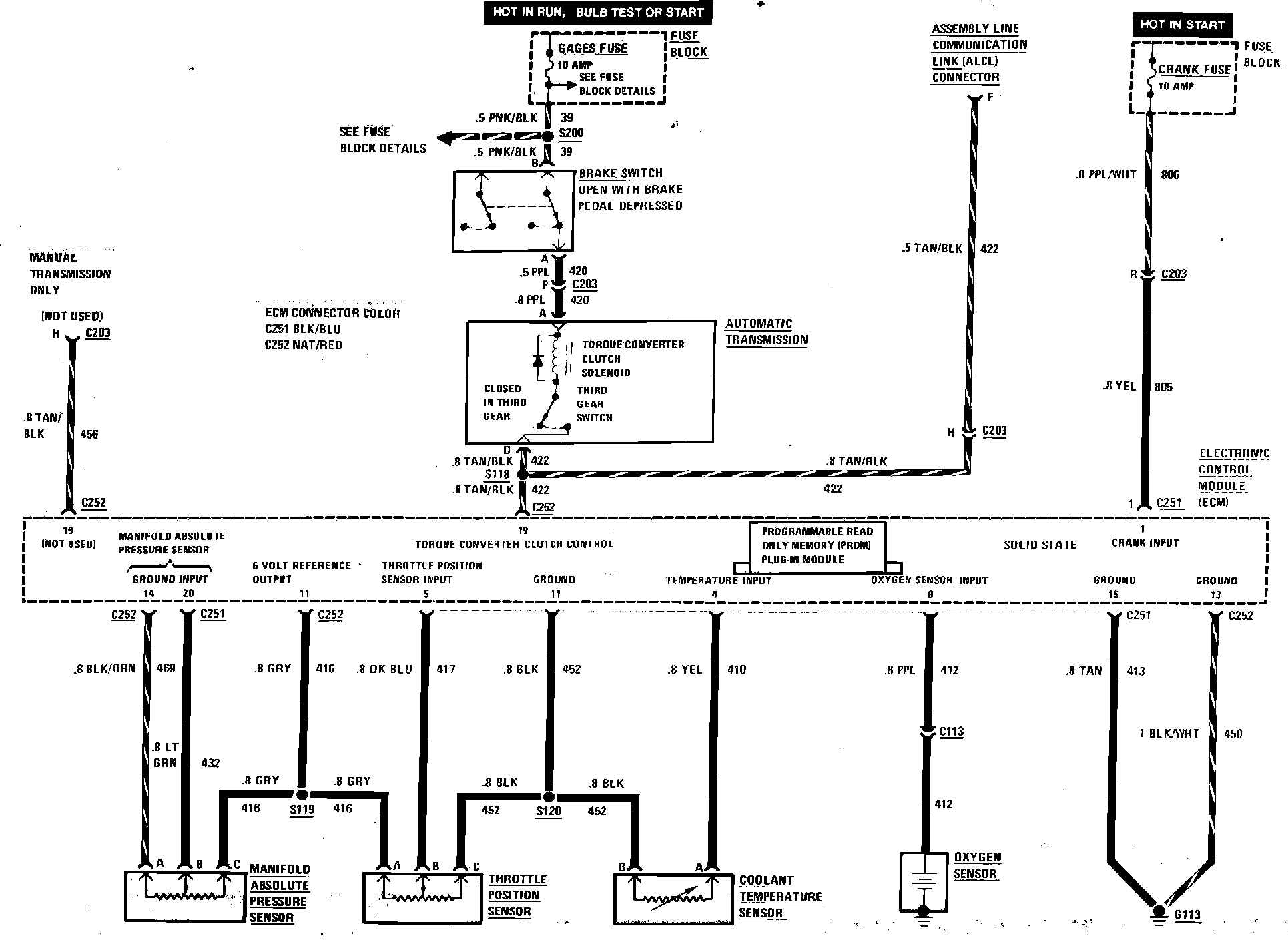

Fig. 46 Electronic Fuel Injection (Engine Data Sensors, Torque Convertor Clutch & Upshift Indicator) Wiring Circuit.:
