Home >> Buick >> 1985 >> Skylark L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

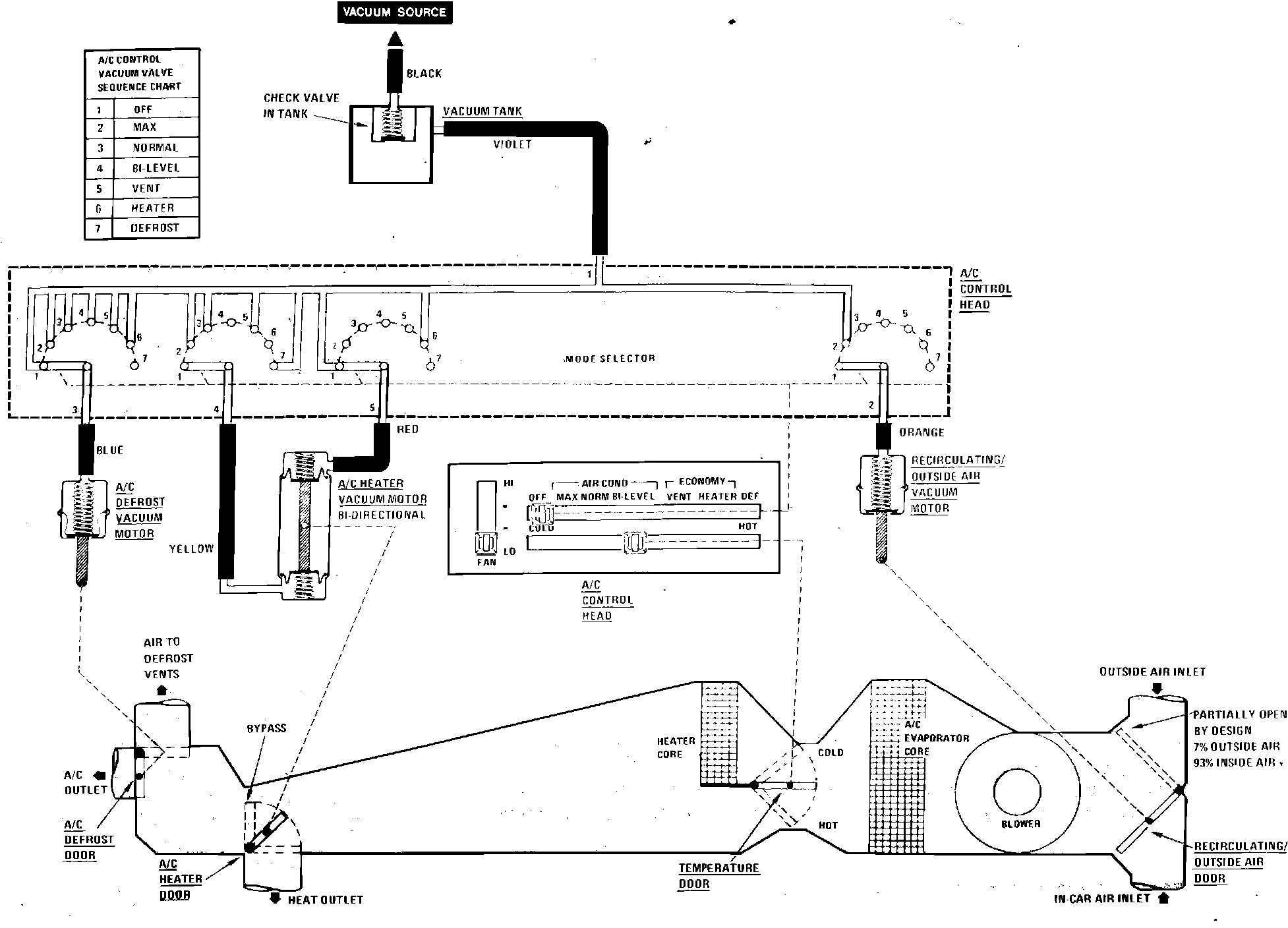

Fig. 9 A/C Vacuum Circuit.:
