A/C Diagnosis W/Variable Displacement Orifice Tube
>>
Chart A - V-5 System
Chart A - V-5 System

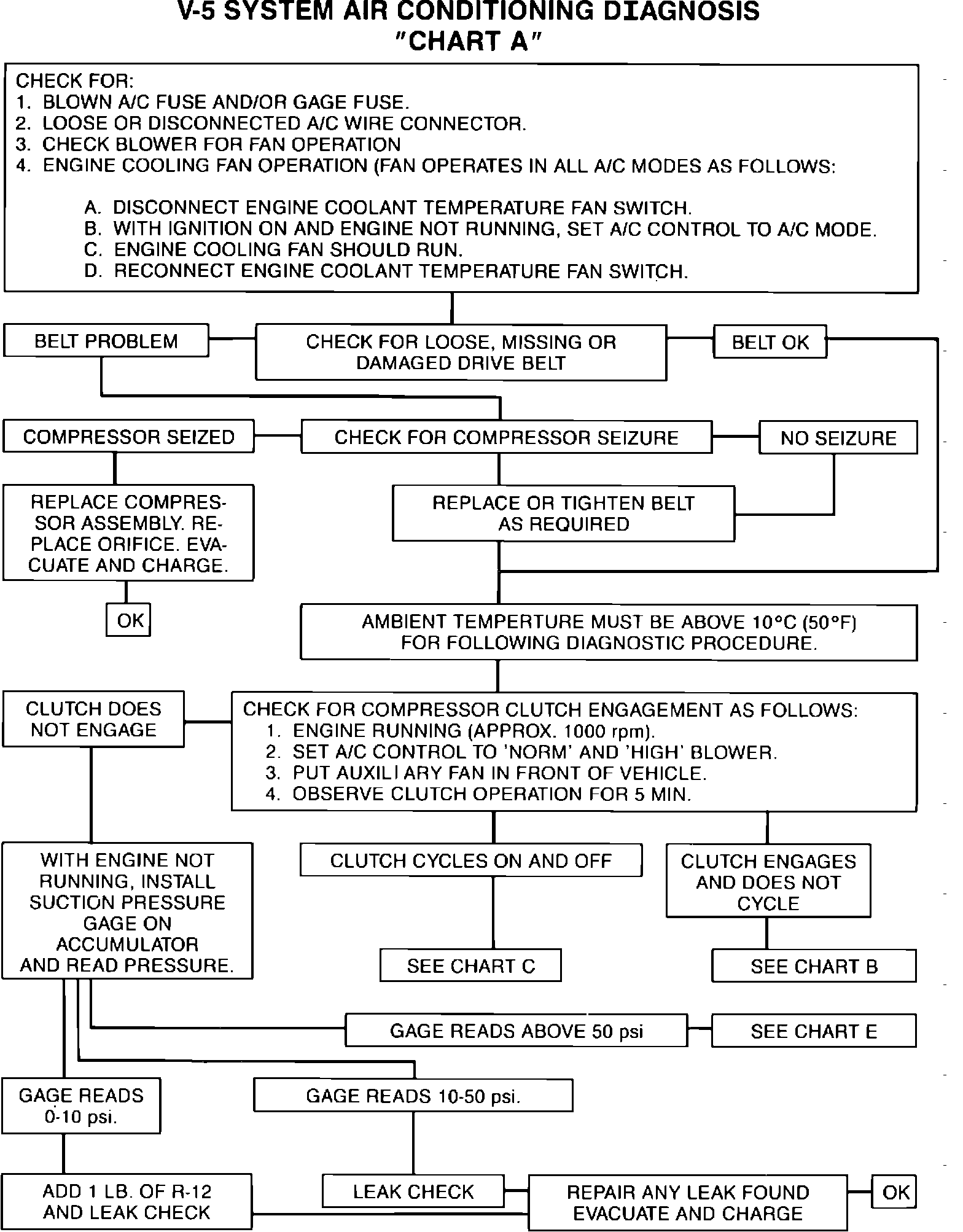

Fig. 22a A/C cooling system diagnosis (Part 1 of 5):
