A/C Diagnosis W/Variable Displacement Orifice Tube
>>
Chart B - V-5 System
Chart B - V-5 System

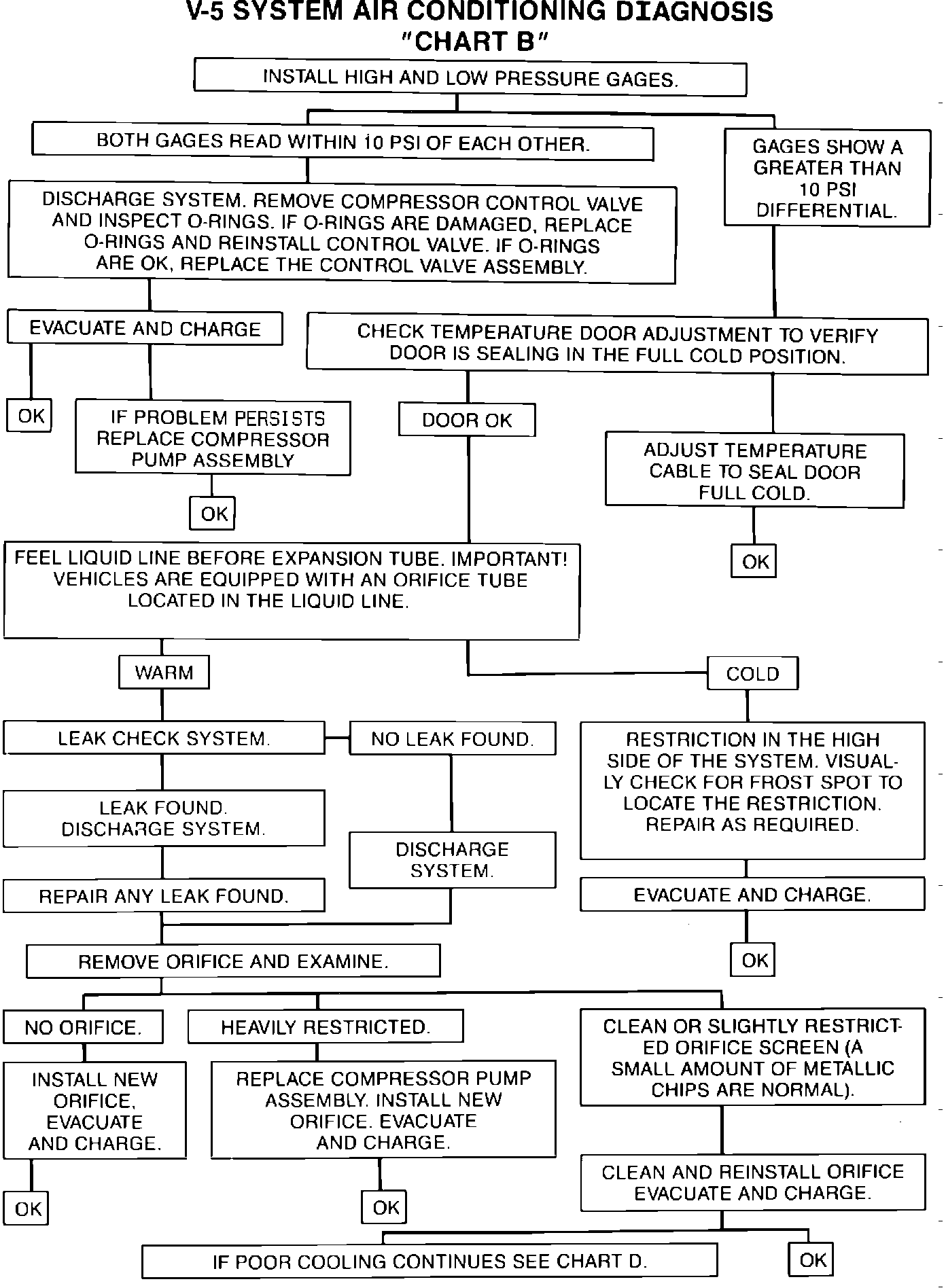

Fig. 22b A/C cooling system diagnosis (Part 2 of 5):
