A/C Diagnosis W/Variable Displacement Orifice Tube
>>
Chart D - V-5 System
Chart D - V-5 System

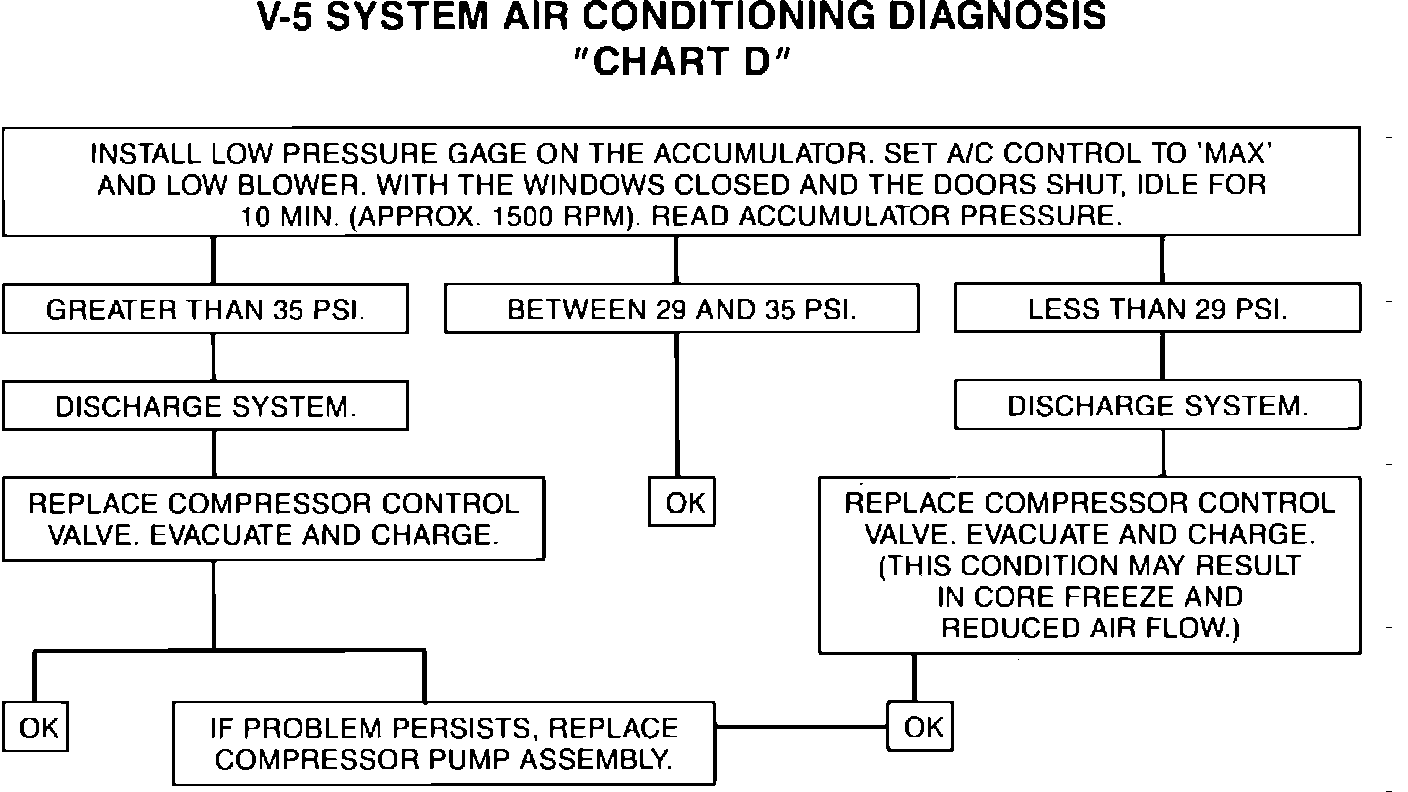

Fig. 22d A/C cooling system diagnosis (Part 4 of 5):
