A/C Diagnosis W/Variable Displacement Orifice Tube
>>
Chart E - V-5 System
Chart E - V-5 System

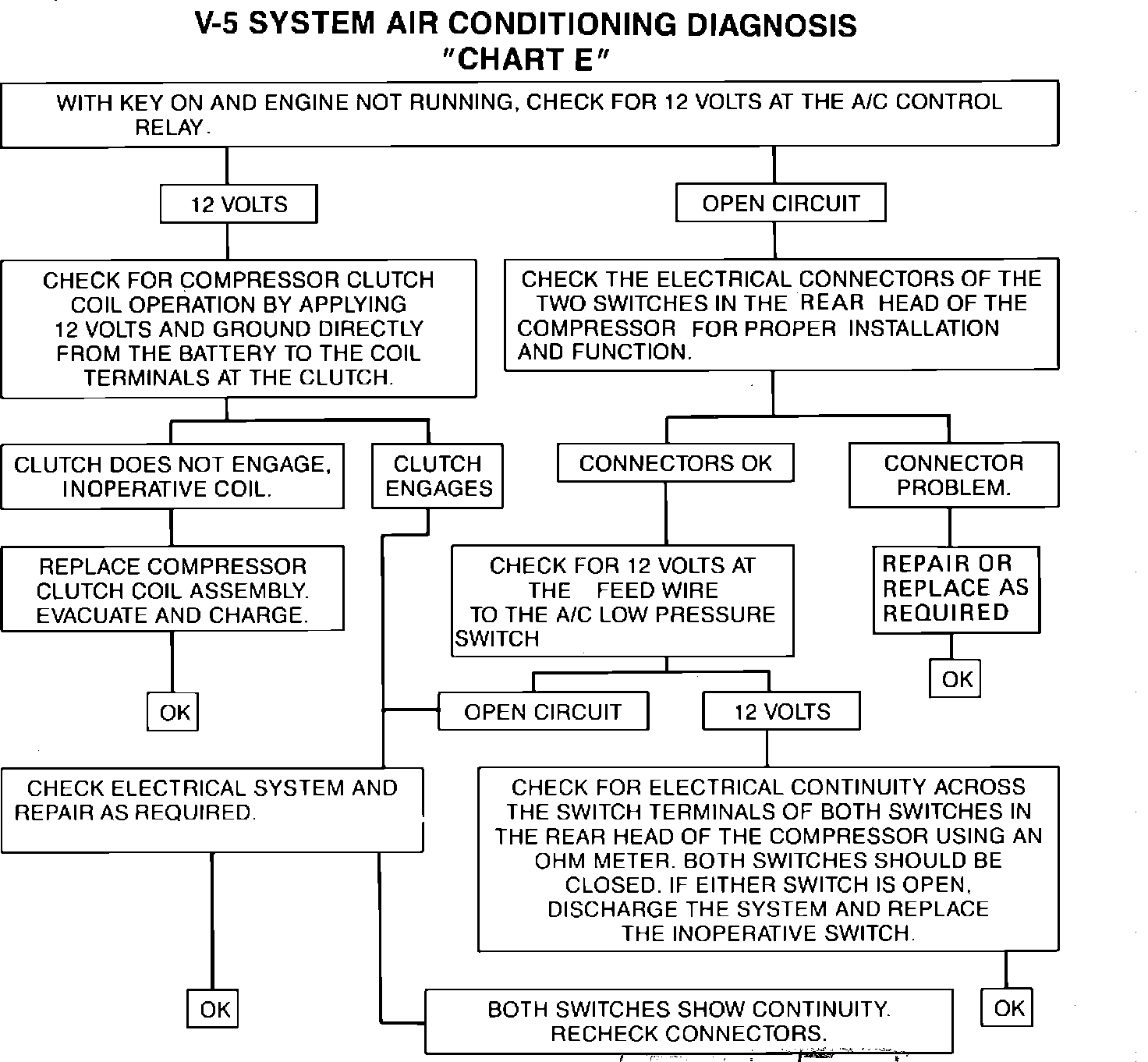

Fig. 22e A/C cooling system diagnosis (Part 5 of 5):
