Fuel Control & Idle Air Control (IAC)
Fuel Control & Idle Air Control (IAC)

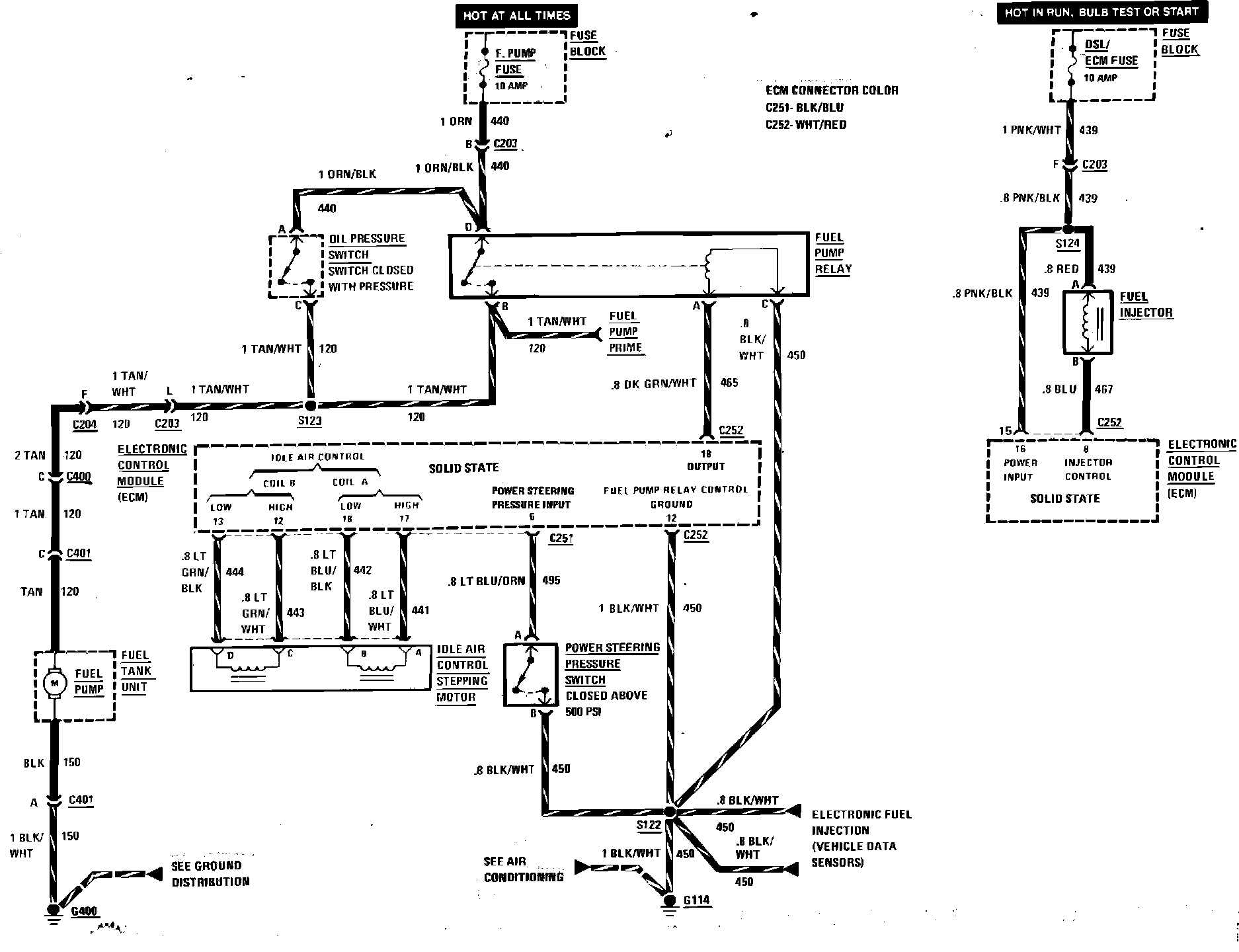

Fig. 44 Electronic Fuel Injection (Fuel Control & Idle Air Control):
