Ignition System & Service Engine Soon Light
Ignition System & Service Engine Soon Light

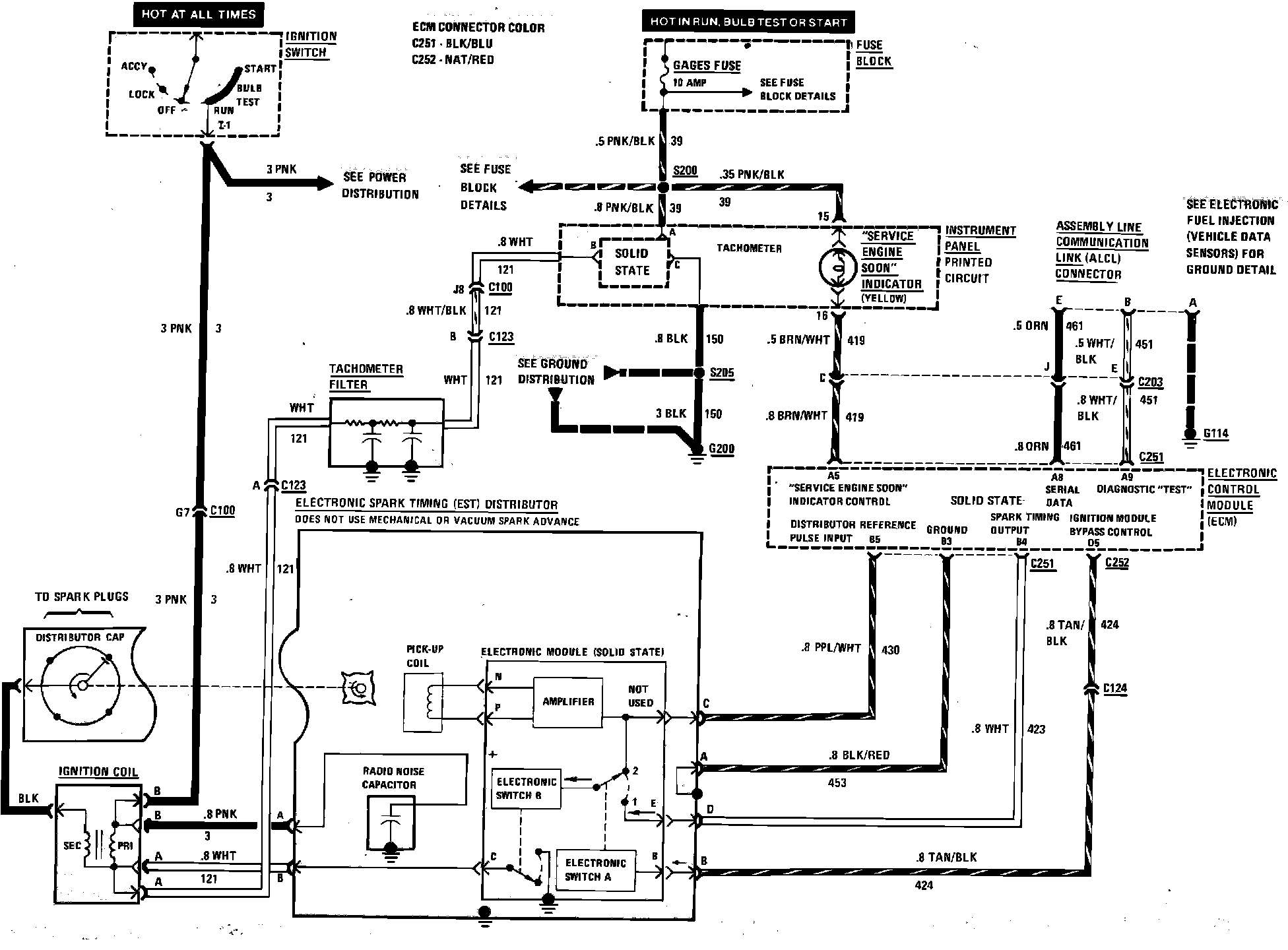

Fig. 47 Electronic Fuel Injection (Ignition & Service Engine Soon Indicator) Wiring Circuit.:
