Vehicle Data Sensors
Vehicle Data Sensors

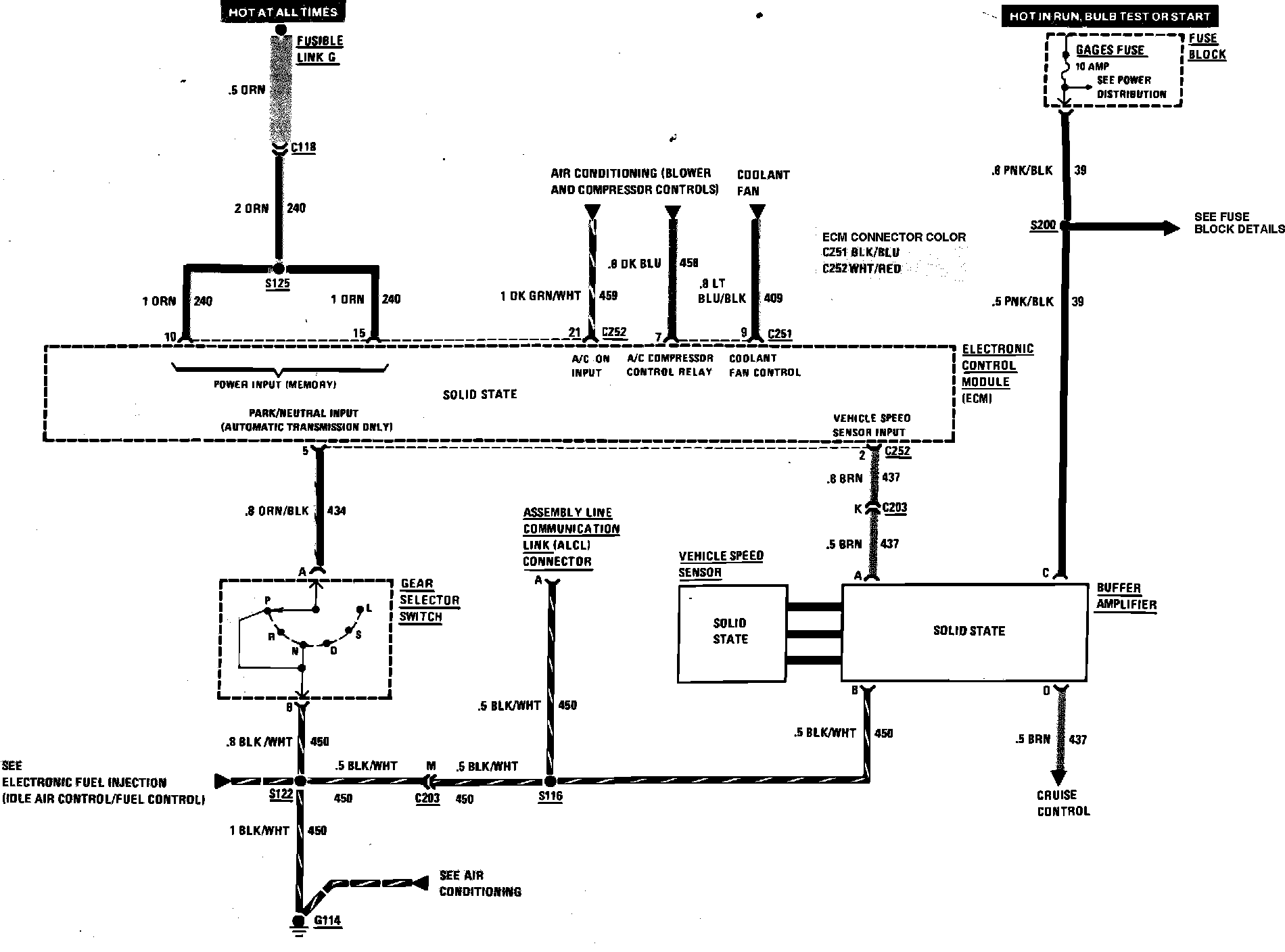

Fig. 45 Electronic Fuel Injection (Vehicle Data Sensors) Wiring Circuit.:
