Home >> Buick >> 1985 >> Skylark L4-151 2.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Part 2 of 3

Part 2 of 3

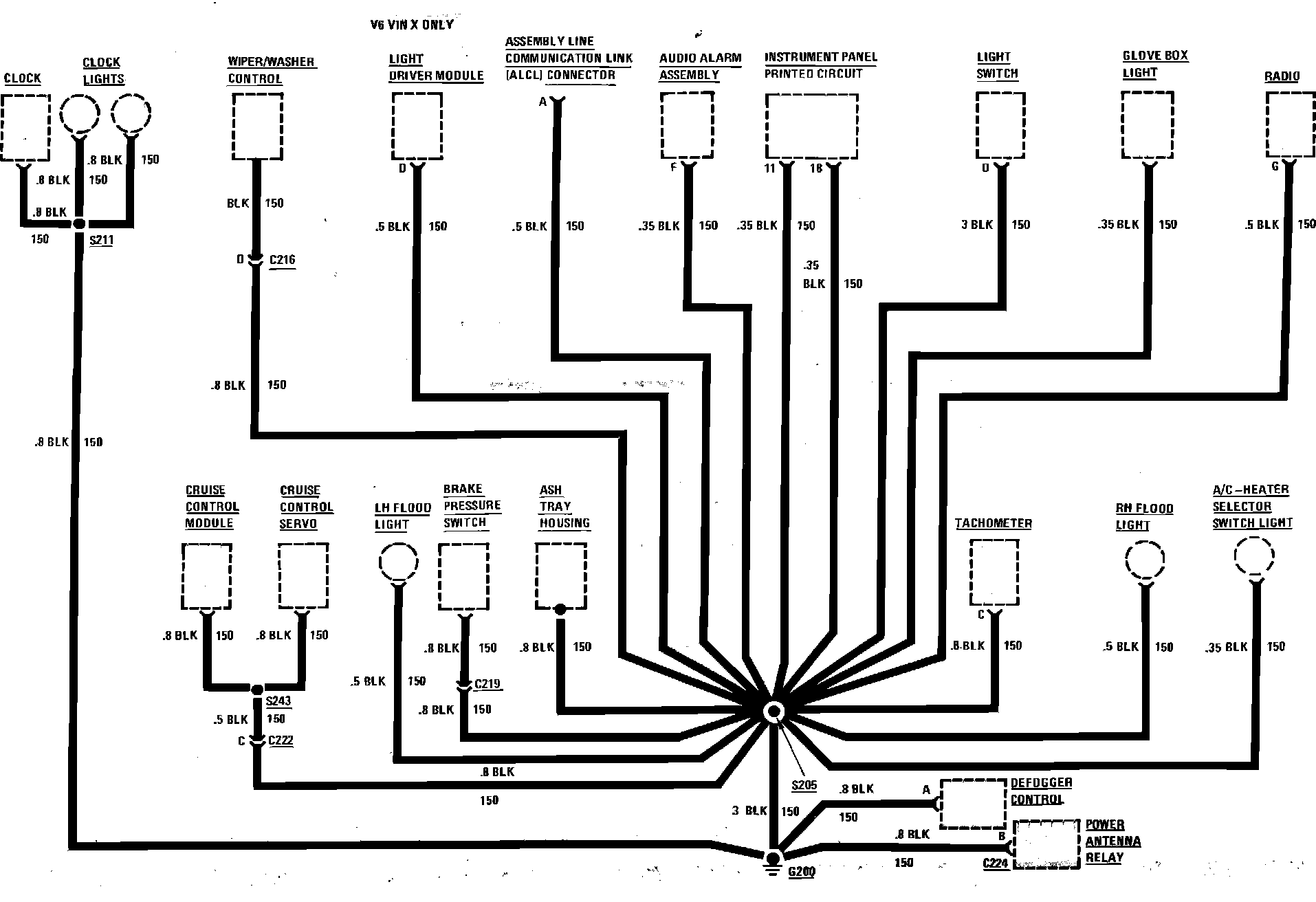

Fig. 49 Ground Distribution. Part 2 of 3:
