DTC 32

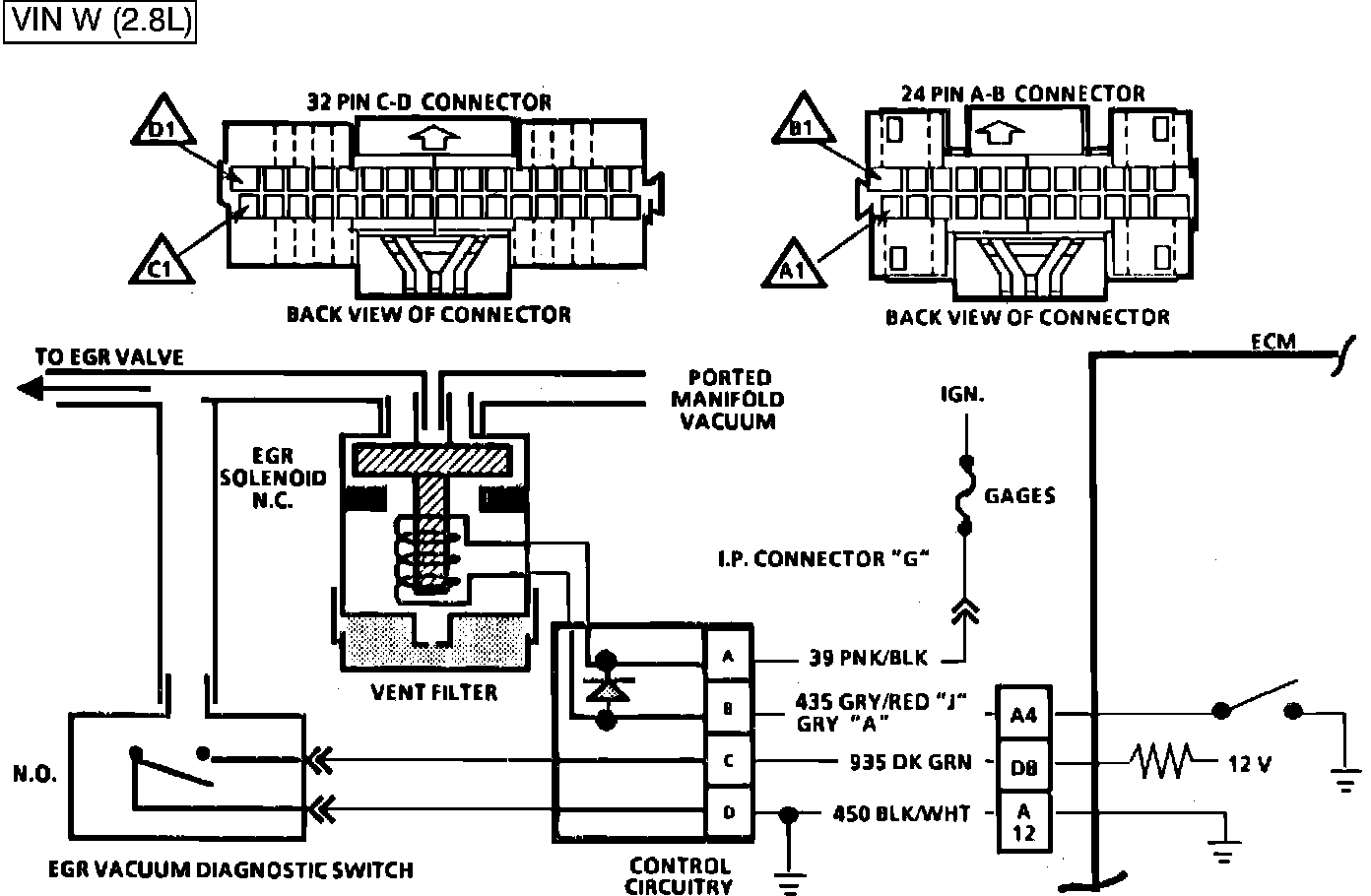

Fig. 050 - WIRING DIAGRAM for Code 32 EGR System Failure. VIN W:

CODE 32

EXHAUST GAS RECIRCULATION (EGR) VACUUM CONTROL

2.8L "A & J" SERIES

FUEL INJECTION (PORT)

Code 32 means that the EGR diagnostic switch was closed during start-up, or that the switch was not detected closed under the following conditions.
a. Coolant temperature greater than 80°C (176°(F).
b. EGR duty cycle commanded by the ECM is greater than 55%
c. TPS less than half throttle, but not at idle.
d. All conditions above must be met for 5 seconds.
If the switch is detected closed during start-up, or, if the switch is detected open when the above conditions are met, the "SERVICE ENGINE SOON" light will remain "ON" unless the switch changes state.
The EGR valve is controlled by an ECM controlled solenoid. The solenoid is normanlly closed and the vacuum source is a ported signal. The ECM will turn the EGR "On" and "OFF" (Duty Cycle) by grounding CKT 435. The duty cycle is calculated by the ECM based on information from the coolant and mass airflow sensor and engine PRM. The duty cycle should be 0% (no EGR) when in Park or Neutral, TPS input below a specified value, or TPS indicating WOT.
With the ignition "ON", engine stopped, the EGR solenoid is de-energized, unless the diagnostic terminal is grounded.

Fig. 049 - Chart - Code 32 EGR System Failure:

1. If the first step caused code 32 to set, then the ECM has recognized a closed vacuum switch on start-up. This test will determine whether the EGR diagnostic switch is the cause, or if the wiring or the ECM is the cause.
2. With the ignition on, the solenoid should not be energized and vacuum should not pass to the EGR valve.
3. To this point, the EGR solenoid and valve are OK, and the following checks will check the diagnostic vacuum switch portion of the system.
4. The diagnostic switch should close at about 2" of vacuum. With vacuum applied, the switch should close and resistance go to near zero Ohms and the vacuum should hold.
