Emission Control, Idle Air Control & Vehicle Data Sensors
Emission Control, Idle Air Control & Vehicle Data Sensors

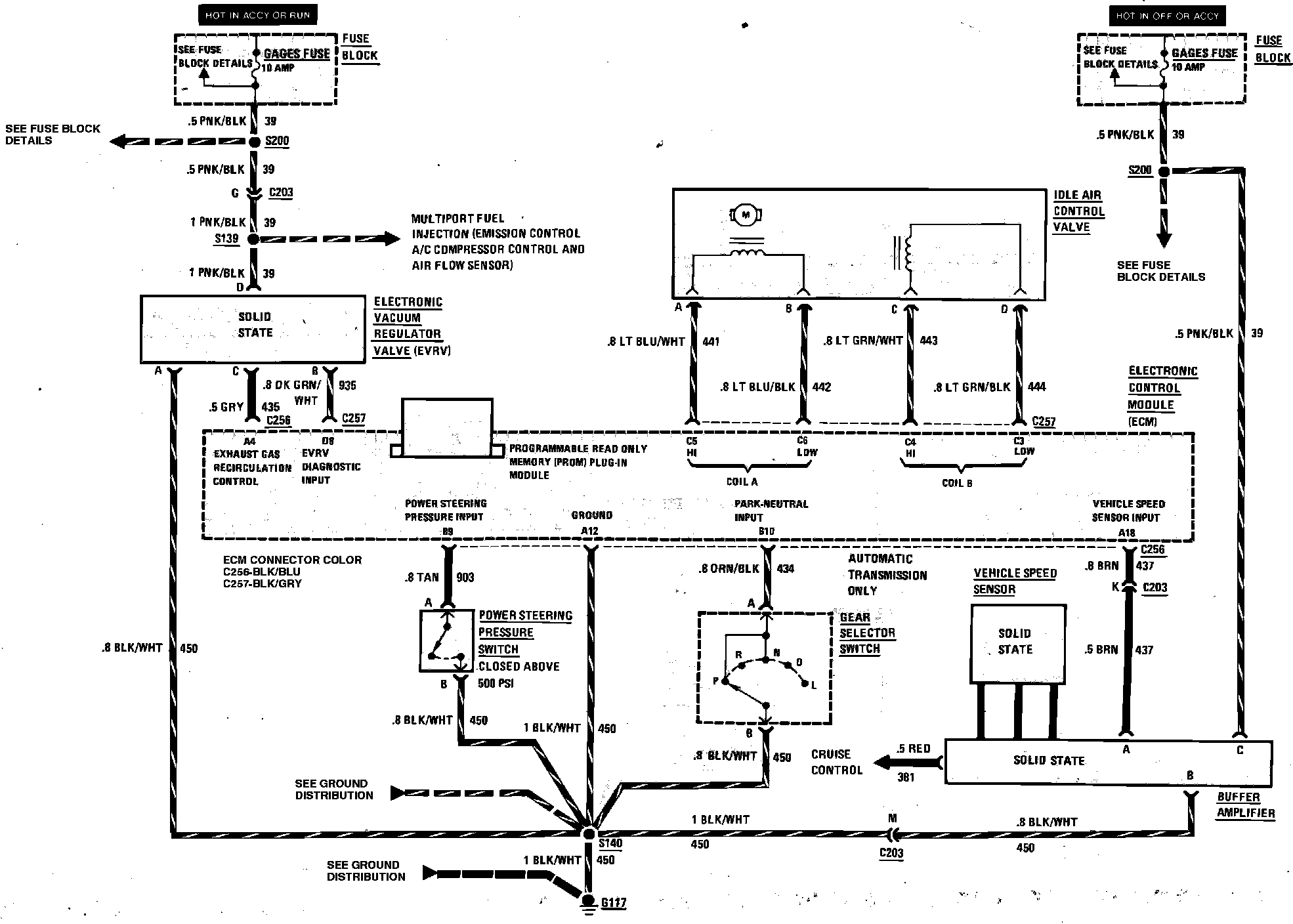

Fig. 66 Mulitport Fuel Injection (Emission Control, Idle Air Control & Vehicle Data Sensors) Wiring Circuit.:
