Electrical Diagrams

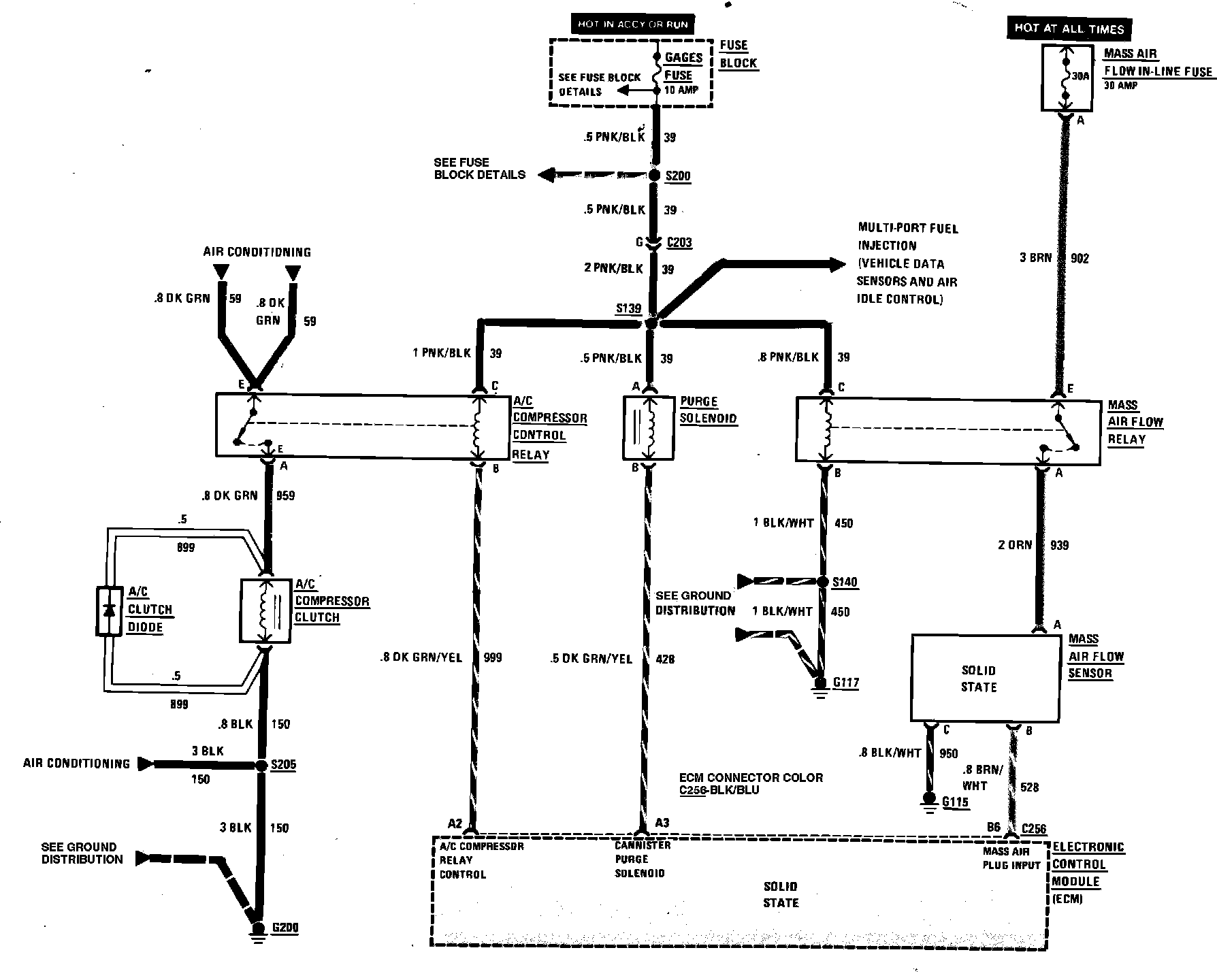

Fig. 63 Multiport Fuel Injection (A/C Compressor, Air Flow Sensor & Emission Control) Wiring Circuit.:
