Engine Data Sensors, Cold Start & Torque Converter Clutch

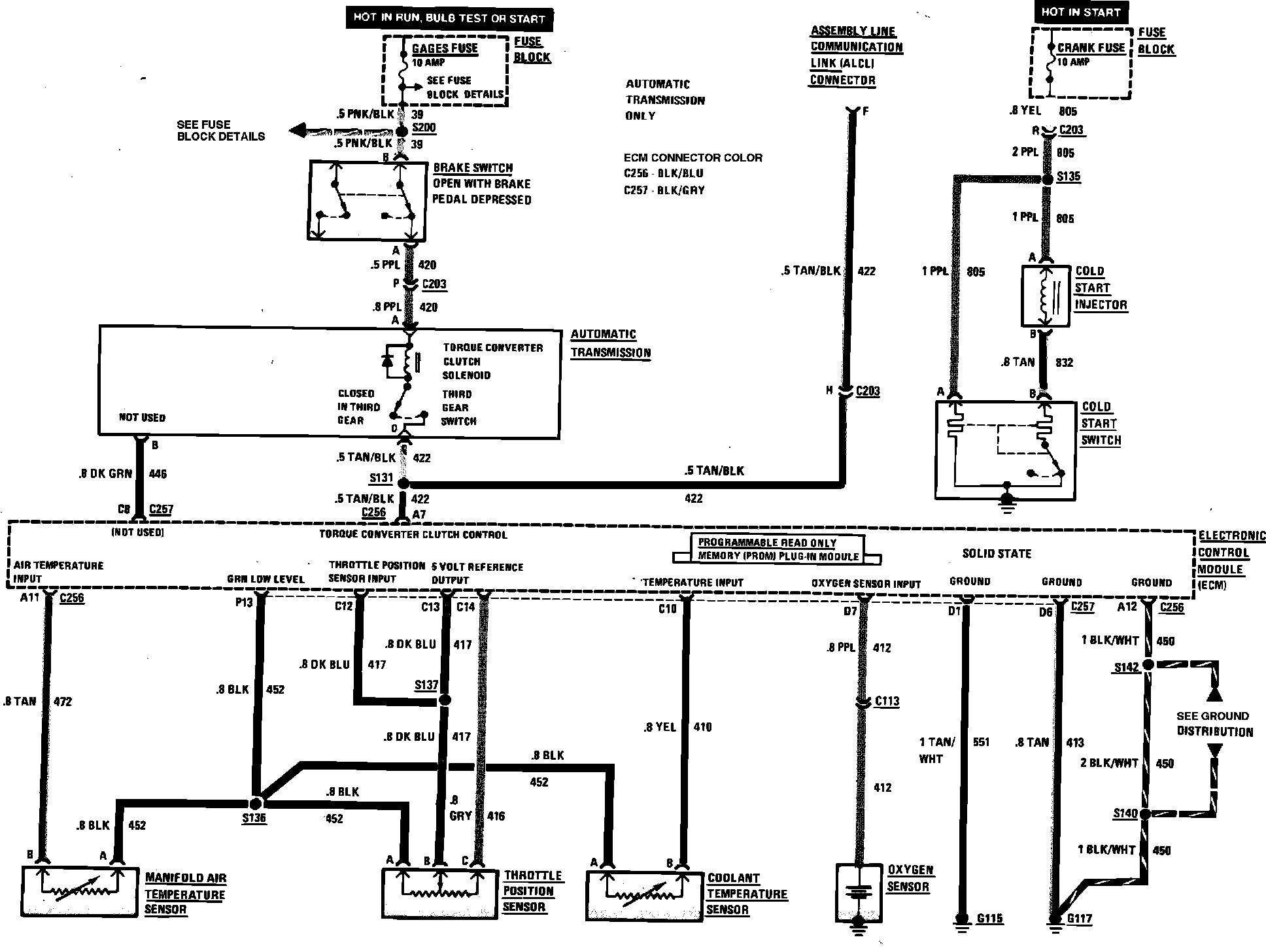

Fig. 65 Multiport Fuel Injection (Cold Start, Engine Data Sensors & Torque Convertor Clutch) Wiring Circuit.:
