Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

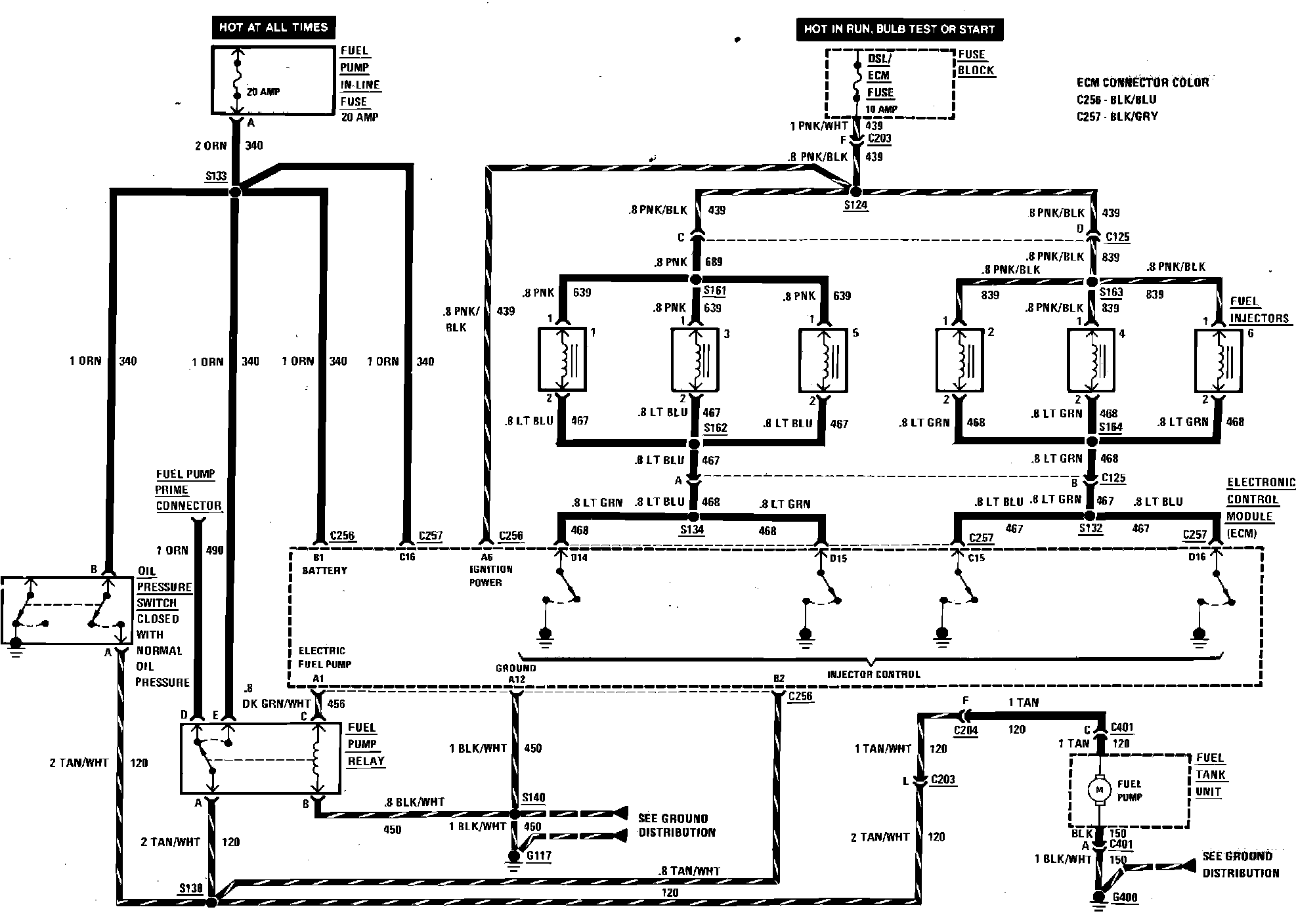

Fig. 68 Multiport Fuel Injection (Fuel Control & Injectors) Wiring Circuit.:
