Component Diagnostic Charts - Port Fuel Injection

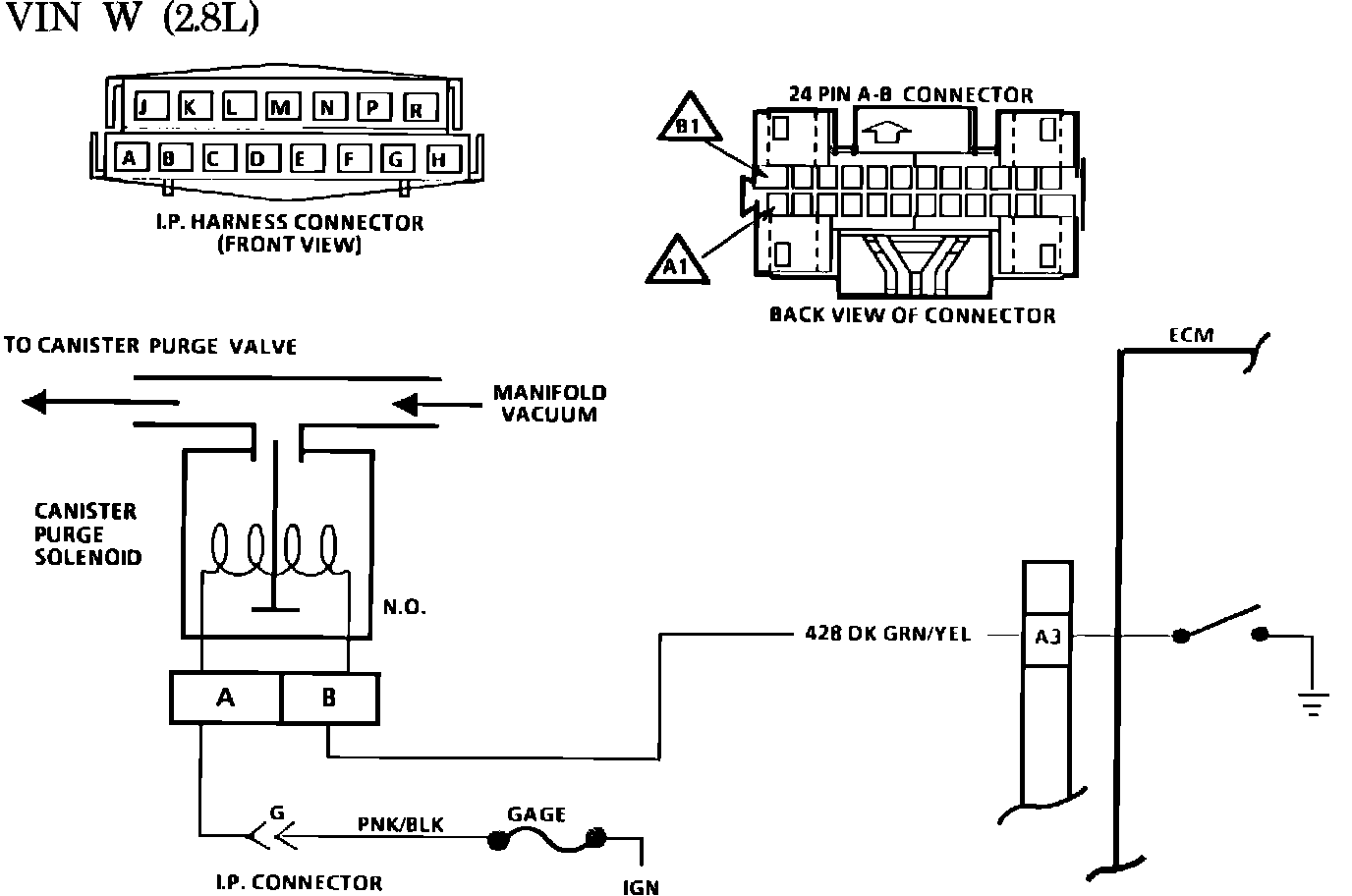

Fig. 005 - WIRING DIAGRAM for Chart C-3 Canister Purge Valve. VIN W:

CHART C-3

CANISTER PURGE VALVE CHECK

2.8L SERIES

FUEL INJECTION (PORT)

Canister purge is controlled by a solenoid that allows manifold vacuum to purge the canister when de-energized. The ECM supplies a ground to energize the solenoid (purge off).
If the diagnostic test terminal is ungrounded with the engine stopped or the following is met with the engine running the purge solenoid is de-energized (purge on).
a. Engine run time after start more than 1 min.
b. Coolant temperature above 75°C.
c. Vehicle speed above 15 mph.
d. Throttle off idle.

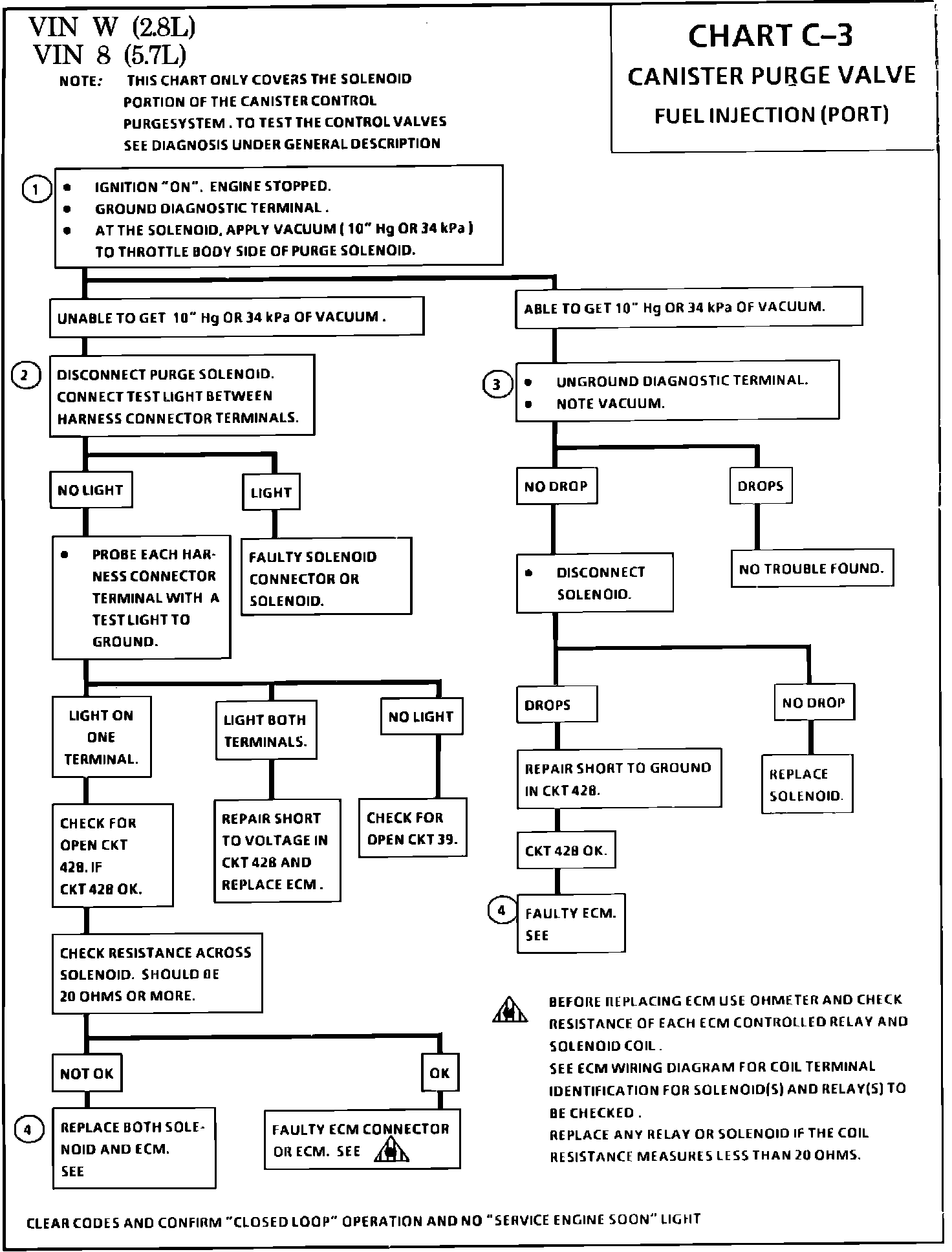

Fig. 003 - Chart C-3 Canister Purge Valve.:

1. Checks to see if the solenoid is opened or closed. The solenoid is normally energized in this step; so it should be closed.
2. Checks for a complete circuit. Normally there is ignition voltage on CKT 39 and the ECM provides a ground on CKT 428. A shorted solenoid could cause an open circuit in the ECM.
3. Completes functional check by ungrounding test terminal. This should normally de-energize the solenoid and allow the vacuum to drop (purge on).
4. Solenoids or relays are turned "ON" or "OFF" by the ECM internal electronic switches called "drivers". Each driver is part of a group of four called "Quad-Drivers". Failure of one can damage any other driver within the set.

Solenoid coil resistance must measure more than 20 ohms. Less resistance will cause early failure of the ECM 'DRIVER'. Using an ohmmeter, check the solenoid coil resistance of all ECM driver relays and solenoids. See ECM Wiring Diagrams for coil terminal identification.
