Rochester Varajet E2SE Series
>>

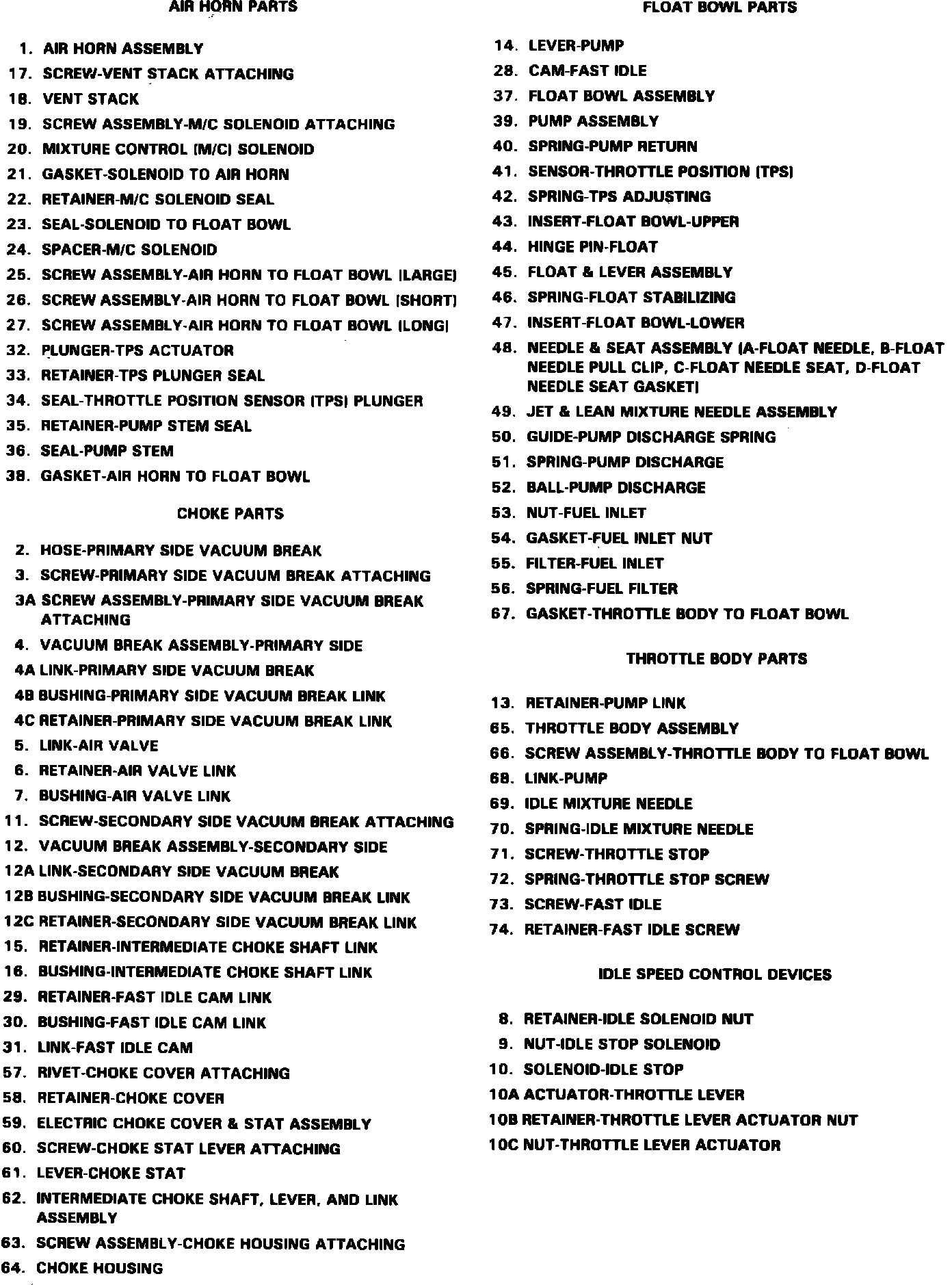

Legend
Legend
Fig. 3b Exploded view of E2SE carburetor (Part 2 of 2):
