Skylark V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
VIN X (2.8L)
VIN X (2.8L)

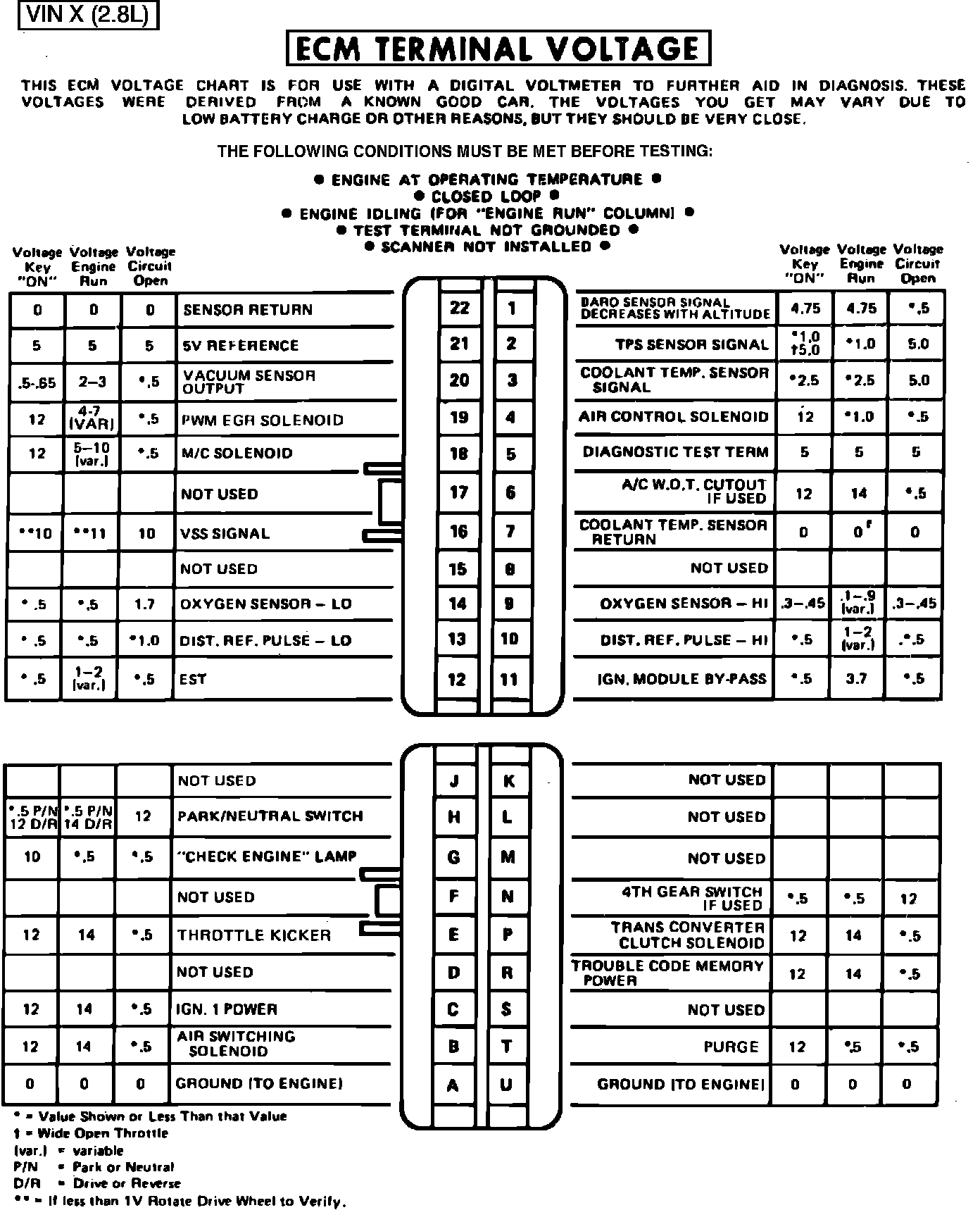

Fig. 033 - ECM Connector Terminal Identification & Voltage Specifications.:
